Product Description

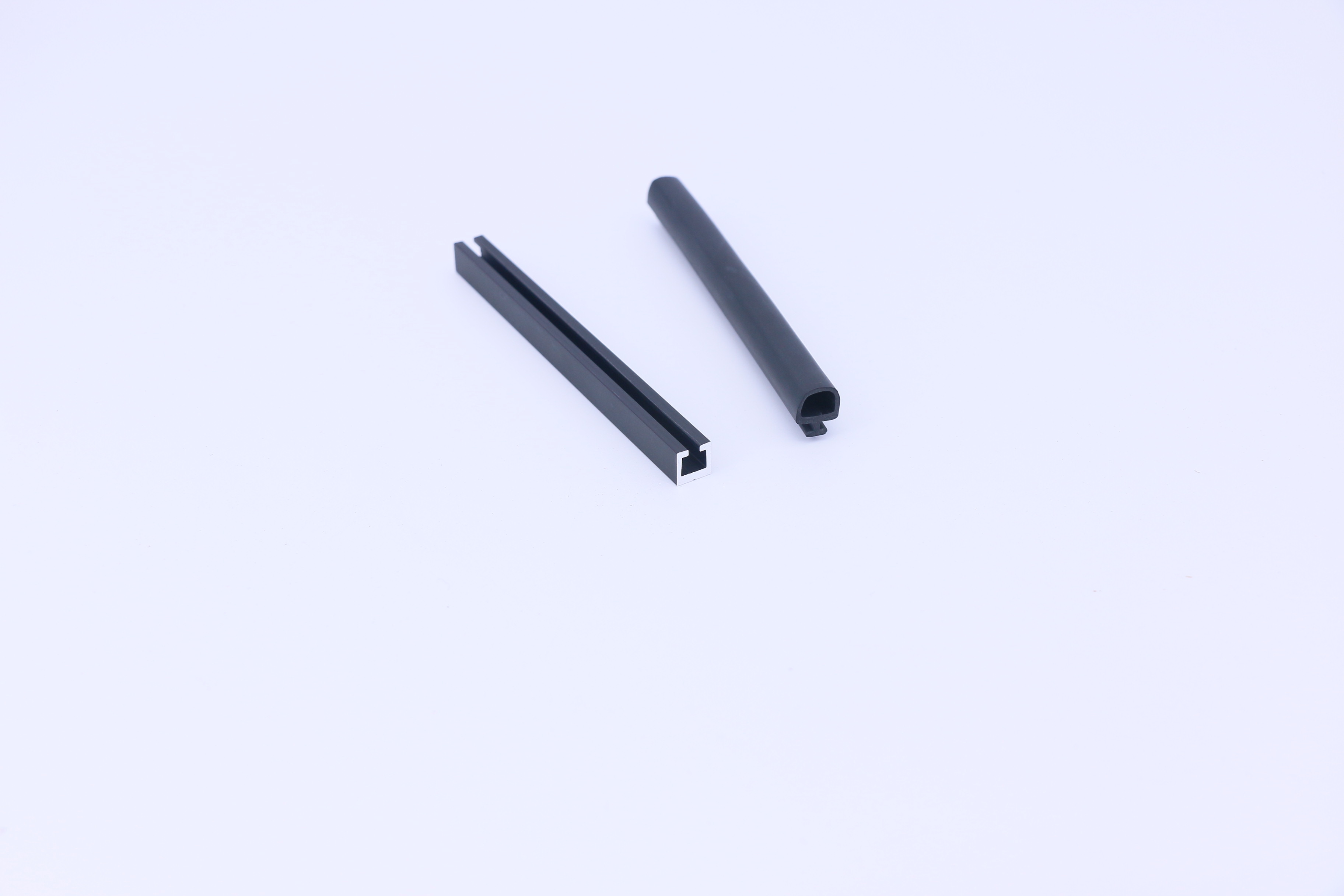

FUTAI safety rubber edge R101 is usually applied to AGV.
It works with safety sensor strip FS-1N or FS-5. This sensitive strip switch is high cost effective and durable, we offer 20 years service or 100,000 times using.
The MOQ of this item is 500m.
If you are interested in our products, we will try our best to provide the best price.
| Technical Data | |
| Product name | Safety edge |
| Item No. | FS-101 |
| Type | Separated type |

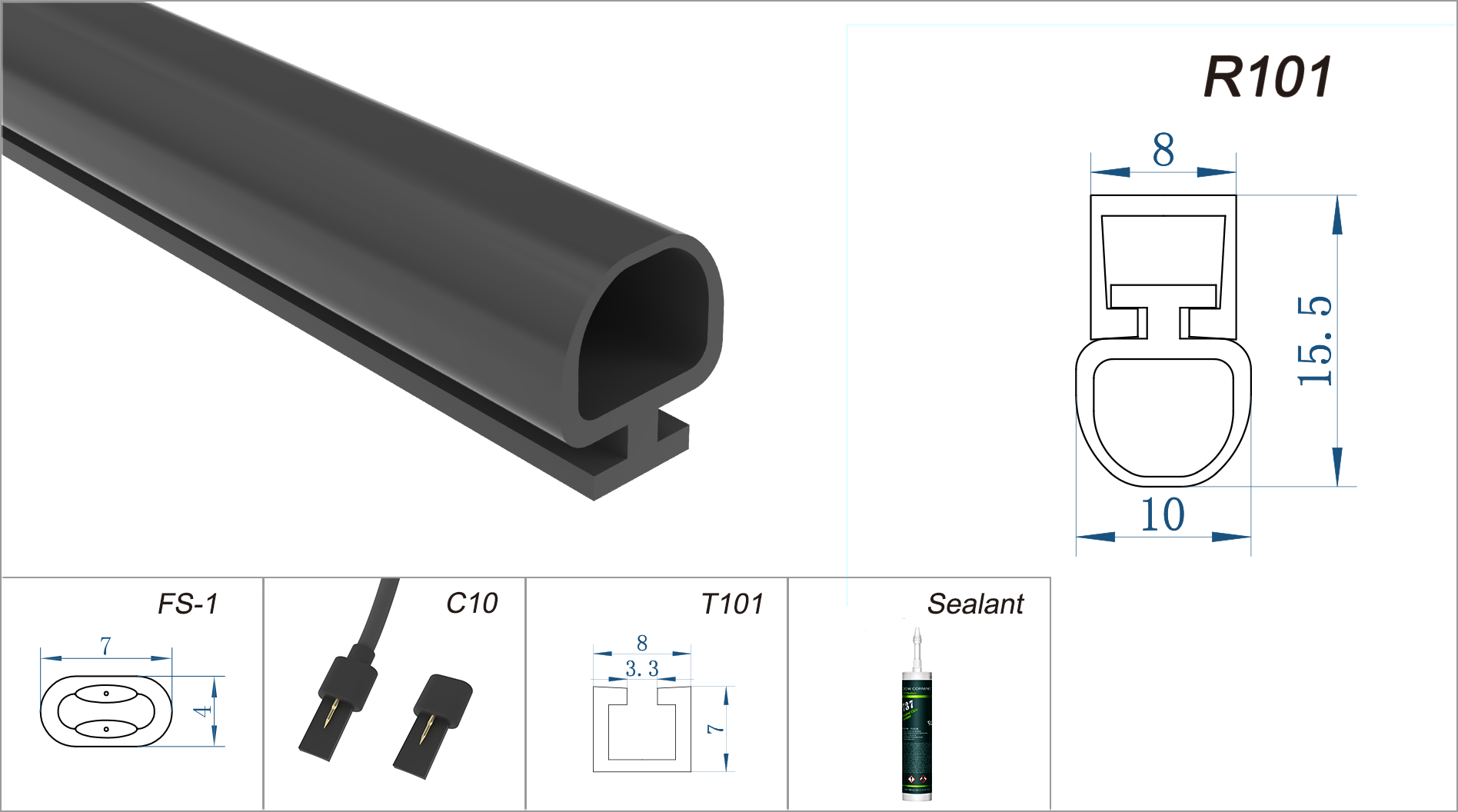

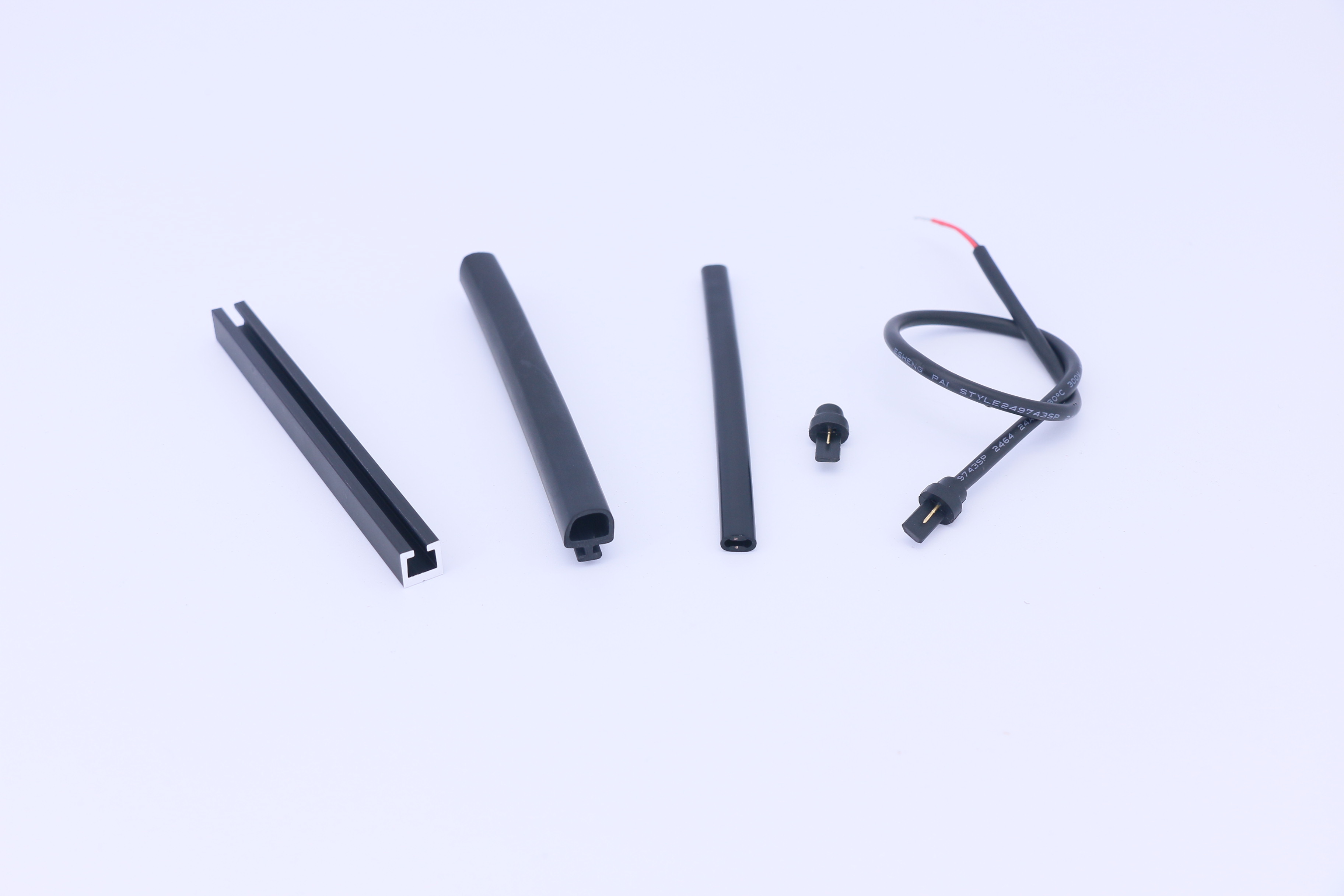

| Components | |
| a. Rubber profile R101 | EPDM material,black color |
| b. Inner sensor tape FS-1 | Silicon material,Black color(FS-5 available) |
| c. End piece C10 | With 250mm cable;Without resistance |
| d. End cap | Sealed with sealant |
| e. Aluminum rail T101 (W*H) | 8mm*7mm,Max length 3M |
| 1.Size (W*H) | 8mm*15.5mm |
| 2.Protection class | IP65 available |
| 3.Trigger force | ＜20N |
| 4.Launch distance | 1.0-2.5mm |
| 5.Operating temperature | -35℃~+80℃ |
| 6.Weight | ±155g/m |
| 7.Package | Carton |
| 8.Approval | CE,ROHS |
| 9.Custom Design | OEM & ODM |
Packing & Shipping
Packed with carton, 100m / roll;
Shipped by Air or Sea
Our service
1. Trade terms: FOB, CIF, EXW, etc.
2. Delivery method: Express, Shipping, Airlines
3. Payment terms: T/T, L/C, PayPal
4. Custom service: Available
5. Sample service: Available
FAQ
1. Why choose us?
Professional---We have been engaged in these products more than 10 years;
Service---One-Stop Solution service.
2. What is a FUTAI Safety Edge?
FUTAI Safety Edge is a touch sensitive switch that sends a signal to start, stop or reverse a motor, and the applications are widely.
3. Where can FUTAI Safety Edges be used?
Anywhere you want a simple touch to send a signal!
4. Do you have the matched accessories?
Yes. We offer One-Stop Solution service and supply the related accessories.
5. How can I get a sample to check your quality?
After price confirmation,you can require for samples to check our quality
If you just need a blank sample to check the quality,we will provide you sample for free, and freight at your charge.
