R211
APPLICATIONS Installation on auto production equipments,subway auto door,adjustable bed,Automatic weeding machine,Automatic lifting platform,Robot arm...
Online consultation
Product Description
| Technical Data | |
| Product name | Safety edge |
| Item No. | FS-211 |
| Type | Separated type |

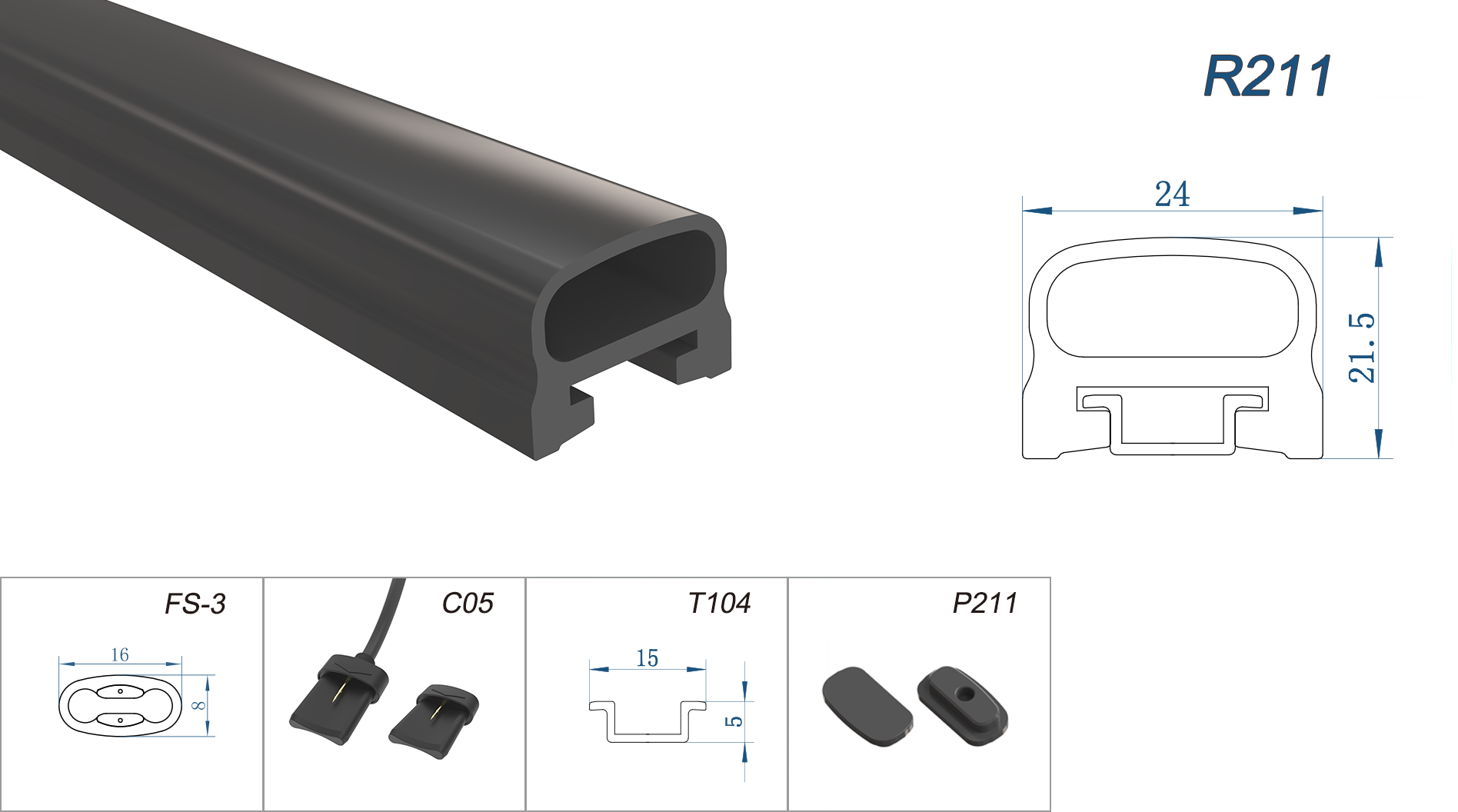

| Components | |
| a. Rubber profile R211 | EPDM material,black color |
| b. Inner sensor tape FS-3 | Silicon material,red color by default(FS-13 available) |
| c. End piece C05 | With 250mm cable;Resistance available |
| d. End cap P211 | EPDM material |
| e. Aluminum rail T104 (W*H) | 15mm*5mm,Max length 3M |
| 1.Size (W*H) | 24mm*21.5mm |
| 2.Protection class | IP65 available |
| 3.Trigger force | ＜30N |
| 4.Launch distance | 3-5mm |
| 5.Mini bending radius | R80m |
| 6.Operating temperature | -35℃~+80℃ |
| 7.Weight | ±405g/m |
| 8.Package | Carton |
| 9.Approval | CE,ROHS |
| 10.Custom Design | OEM & ODM |
Applications
R211 Rubber safety edge sensor for AGV automated guided vehicle and mobile robot anti-collision sensor tape
Our Service
1. Cut service.
2. Assembly service
3. One-Stop Solution
4. Sample available
FAQ
1. What are the payment terms?
T/T, L/C, Paypal.
2. What is the trade terms?
FOB, CIF, EXW, etc.
3. MOQ and production time?
MOQ 300 meters and 20 days lead time.
4. How long can I expect to get the sample?
3--10days.
