Product Description





















Technical data

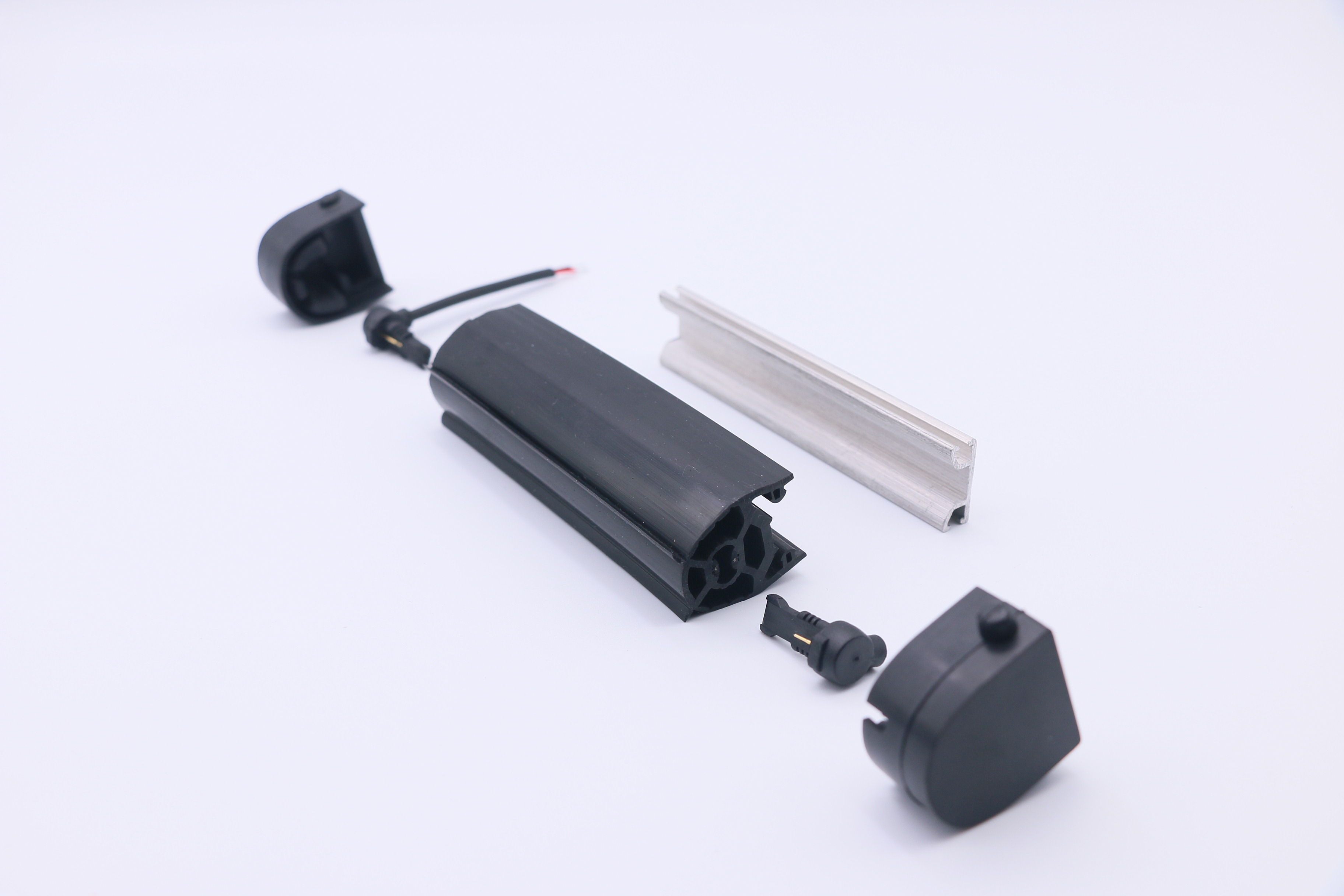

1. Product Name integrated sensor tape
2. Item FS-104
3. Material Wack silicon
4. Color black or white

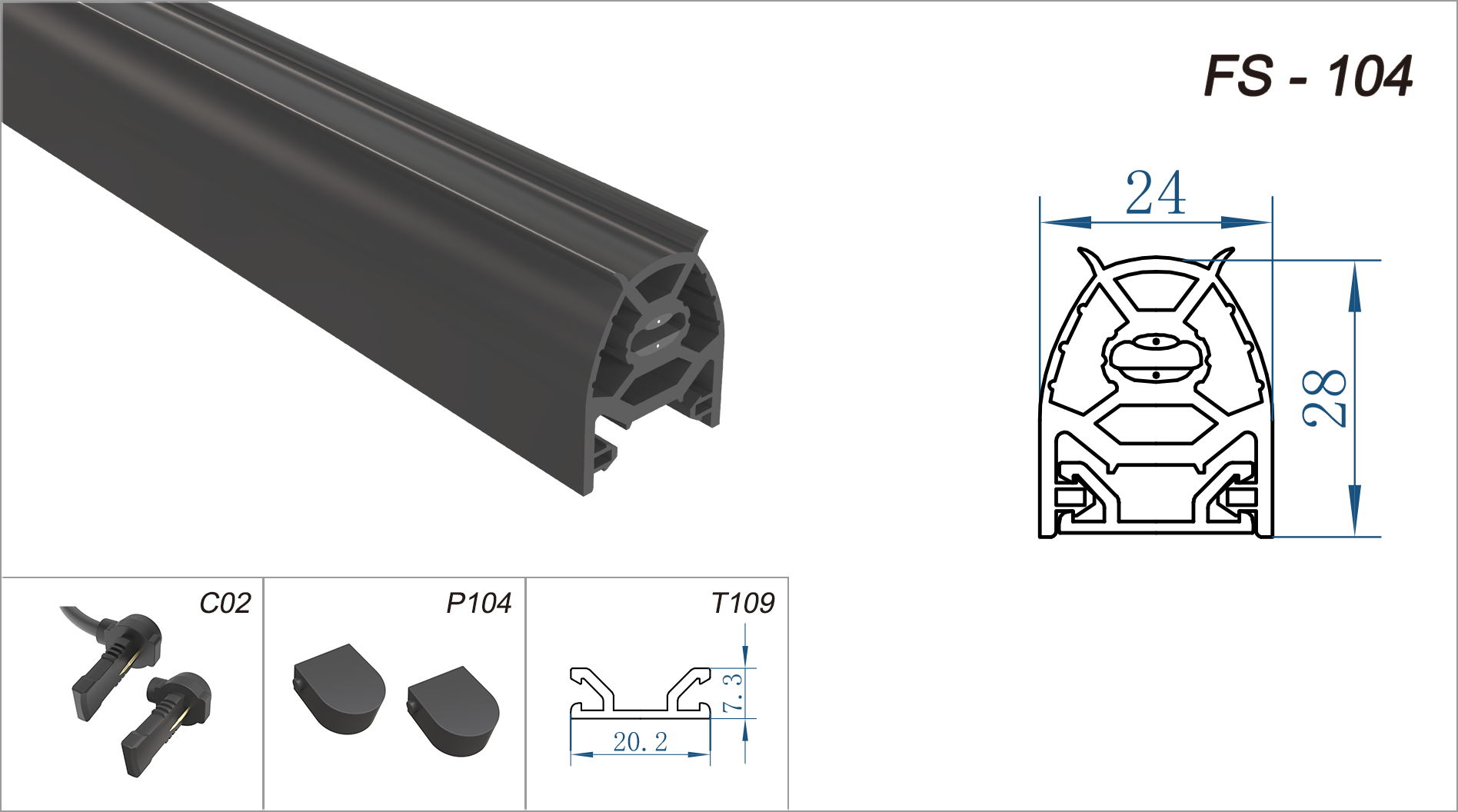

5. Dimension 24*28mm
6. Application

for any automitic

7. Mounting Aluminum track
8. Resistance <100 ohm
9.Connection cable standard length 250mm
24AWG
PVC,Φ3.5 mm, 2x0.23 mm
UL certified
10. Tigger force ≤20N
11. Launch distance 1.0-2.0mm
12. Electric rating Voltage: 24V DC Max.
Current: 0.25AMP Max.
14. Minimum bending radius  (R50mm -R1000mm)
15. Working temperature ­35~+85
16. Storage temperature ­20~+60
17. Custom Design OEM & ODM
18. Weight  ± 290 g/m
19. Packing 30m/roll
20. MOQ 500m



Application

FS-104 for garage  warehouse large factories automatic roller shutter and doors sliding gate anti-clip sensor strip rubber safety edge
APPLICATIONS:Installation on auto production equipments,subway auto door,adjustable bed,Automatic weeding machine,Automatic lifting platform,Robot arm...
MOQ:500m



Packing & Shipping

Packed with carton,30m / roll;

Shipped by Air or Sea



Our service

1. Trade terms: FOB, CIF, EXW, etc.

2. Delivery method: Express, Shipping, Airlines

3. Payment terms: T/T, L/C, PayPal

4. Custom service: Available

5. Sample service: Available



FAQ

1. Why choose us?

Professional---We have been engaged in these products more than 10 years;

Service---One-Stop Solution service.

2. What is a FUTAI Safety Edge?

FUTAI Safety Edge is a touch sensitive switch that sends a signal to start, stop or reverse a motor, and the applications are widely.

3. Where can FUTAI Safety Edges be used?

Anywhere you want a simple touch to send a signal!

4. Do you have the matched accessories?

Yes. We offer One-Stop Solution service and supply the related accessories.

5. How can I get a sample to check your quality?

After price confirmation,you can require for samples to check our quality

If you just need a blank sample to check the quality,we will provide you sample for free, and  freight at your charge.
