FS-55
FS-55B for garage warehouse large factories automatic roller shutter and doors sliding gate anti-clip sensor strip rubber safety edge APPLICATIONS:Installation on auto production equipments,subway auto door,adjustable bed,Automatic weeding machine,Automatic lifting platform,Robot arm... MOQ:500m
Tel/Whatsapp
Email.
Product Description
| Technical Data | |
| 1. Product Name | Integrated Safety Edge |
| 2. Item | FS-55 |
| 3. Material | silicon |
| 4. Color | black |
| 5. Size(W*H) | 16mm*27mm |
| 6. Application | for roller shutter doors |

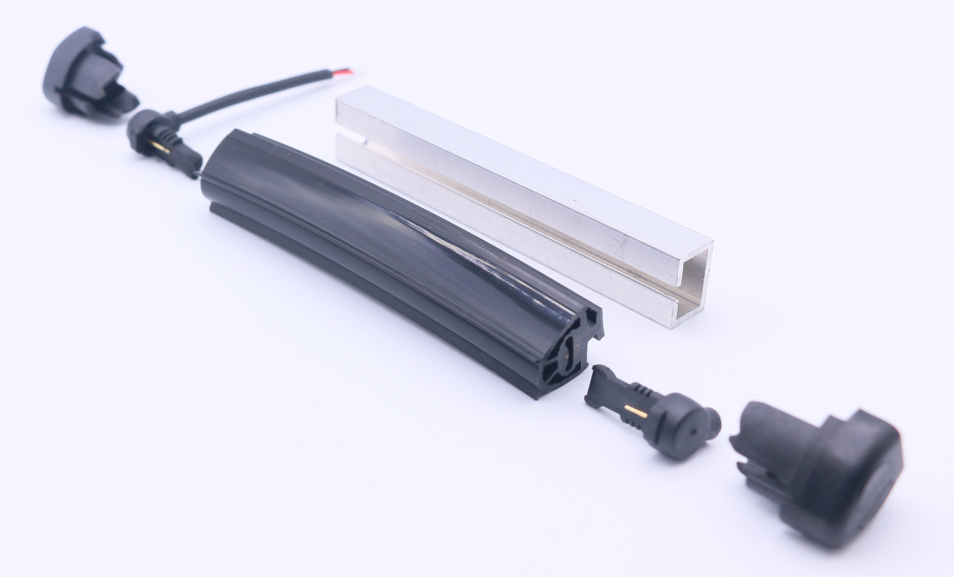

| 7. End Piece C02 | with 250mm cable, resistance available. |
| 8. End Caps P77 | plastic material |
| 9. Base T102 | Aluminium rail |
| 10. Approval | CE & RoHS |
| 11. Custom Design | OEM & ODM |
| 12. Protection class | IP3X(IP67 available) |
| 13. Trigger force | ＜20N |
| 14. Launch distance | 1.6mm |
| 15. Operating temperature | -35℃~+80℃ |
| 16. Weight | ±180g/m |
| 17. Packing | 30m/roll |
Product Description:
The safety edge strip FS-55 is middle size. It is widely used, mostly in roller doors.
These two sensitive strips has the function of waterproof and dustproof.
In addition FS-55B and FS-55V, rubber R219 is suitable for roller door as for its size. This separated type has long service life.
Application:
This sensitive strip is middle size and used widely, such as bus security, roller shutter and various doors.
Packing & Shipping
Packed with carton,30m / roll;
Shipped by Air or Sea
Our service
1. Trade terms: FOB, CIF, EXW, etc.
2. Delivery method: Express, Shipping, Airlines
3. Payment terms: T/T, L/C, PayPal
4. Custom service: Available
5. Sample service: Available
FAQ
1. Why choose us?
Professional---We have been engaged in these products more than 10 years;
Service---One-Stop Solution service.
2. What is a FUTAI Safety Edge?
FUTAI Safety Edge is a touch sensitive switch that sends a signal to start, stop or reverse a motor, and the applications are widely.
3. Where can FUTAI Safety Edges be used?
Anywhere you want a simple touch to send a signal!
4. Do you have the matched accessories?
Yes. We offer One-Stop Solution service and supply the related accessories.
5. How can I get a sample to check your quality?
After price confirmation,you can require for samples to check our quality
If you just need a blank sample to check the quality,we will provide you sample for free, and freight at your charge.
