Product Description
Technical data
| 1. Product Name | integrated sensor tape |

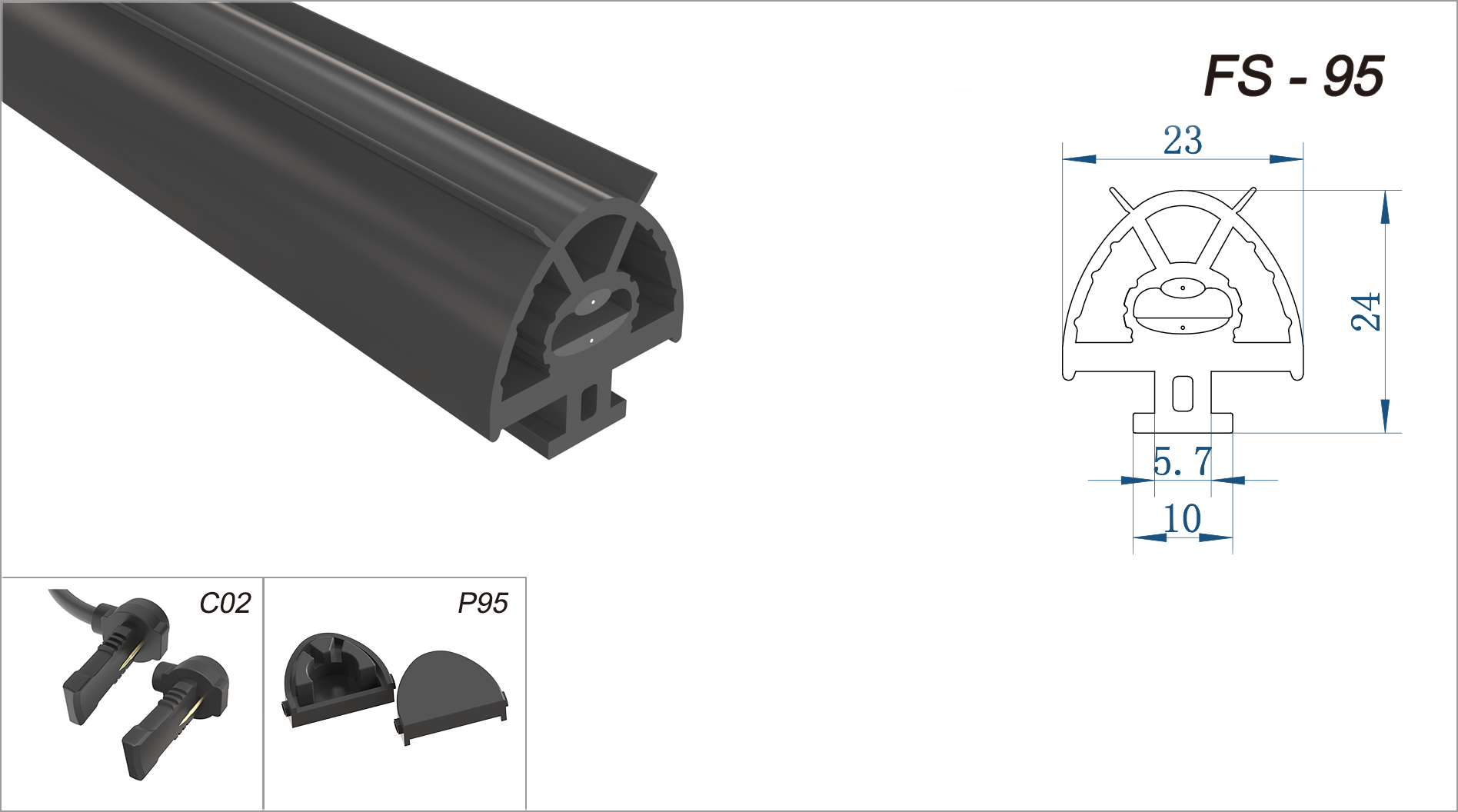

| 2. Item | FS-95 |
| 3. Material | silicon |
| 4. Color | black |
| 5. Dimension | 23*24mm |
| 6. Application |
for any automitic |

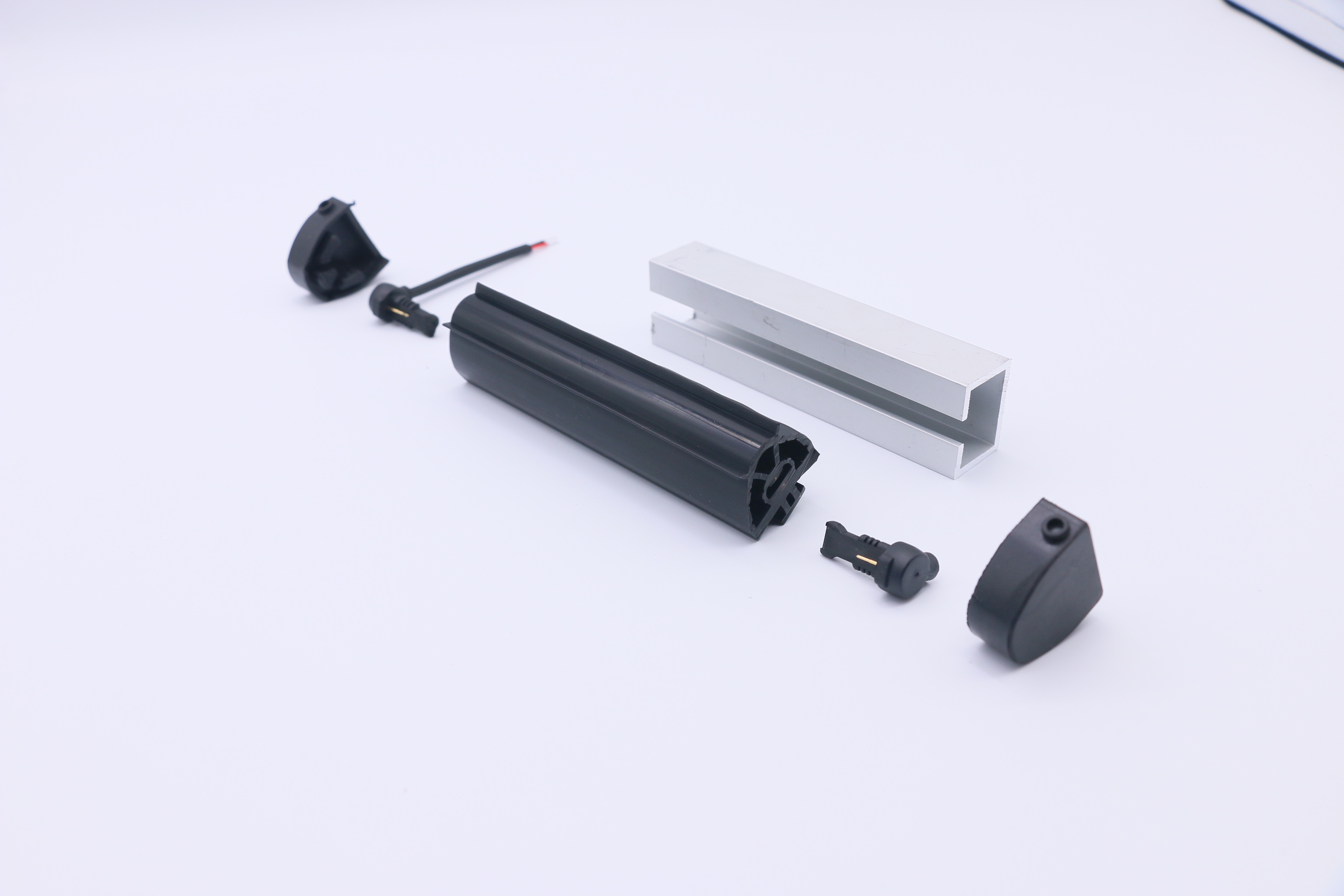

| 7. Mounting | Aluminum track |
| 8. Resistance | <100 ohm |
| 9.Connection cable | standard length 250mm |
| 24AWG | |
| PVC,Φ3.5 mm, 2x0.23 mm | |
| UL certified | |
| 10. Tigger force | ≤20N |
| 11. Launch distance | 1.0-2.0mm |
| 12. Electric rating | Voltage: 24V DC Max. |
| Current: 0.25AMP Max. | |
| 14. Minimum bending radius | (R50mm -R1000mm) |
| 15. Working temperature | 35℃~+85℃ |
| 16. Storage temperature | 20℃~+60℃ |
| 17. Custom Design | OEM & ODM |
| 18. Weight | ± 230 g/m |
| 19. Packing | 30m/roll |
| 20. MOQ | 500m |
Application
FS-95 for garage warehouse large factories automatic roller shutter and doors sliding gate anti-clip sensor strip rubber safety edge
APPLICATIONS:Installation on auto production equipments,subway auto door,adjustable bed,Automatic weeding machine,Automatic lifting platform,Robot arm...
MOQ:500m
Packing & Shipping
Packed with carton,30m / roll;
Shipped by Air or Sea
Our service
1. Trade terms: FOB, CIF, EXW, etc.
2. Delivery method: Express, Shipping, Airlines
3. Payment terms: T/T, L/C, PayPal
4. Custom service: Available
5. Sample service: Available
FAQ
1. Why choose us?
Professional---We have been engaged in these products more than 10 years;
Service---One-Stop Solution service.
2. What is a FUTAI Safety Edge?
FUTAI Safety Edge is a touch sensitive switch that sends a signal to start, stop or reverse a motor, and the applications are widely.
3. Where can FUTAI Safety Edges be used?
Anywhere you want a simple touch to send a signal!
4. Do you have the matched accessories?
Yes. We offer One-Stop Solution service and supply the related accessories.
5. How can I get a sample to check your quality?
After price confirmation,you can require for samples to check our quality
If you just need a blank sample to check the quality,we will provide you sample for free, and freight at your charge.
