Product Description





















Technical Data
Product name Safety edge
Item No. FS-102
Type Separated type

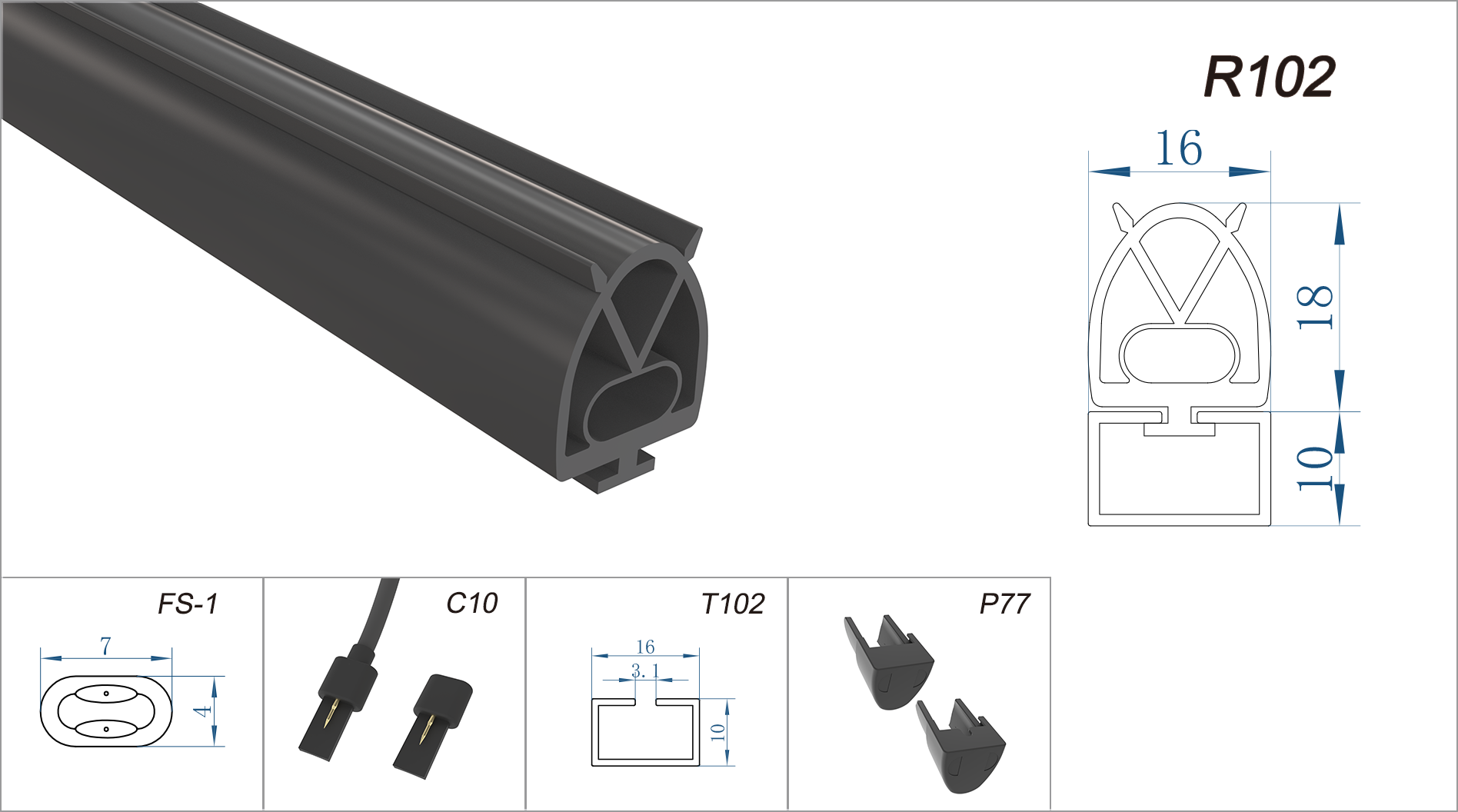

Components
a. Rubber profile R102 EPDM material,black color
b. Inner sensor tape FS-1 Silicon material,Black color(FS-5 available)
c. End piece C10 With 250mm cable;Resistance available
d. End cap P77 EPDM
e. Aluminum rail T102 (W*H) 16mm*10mm,Max length 3M

1.Size (W*H) 16mm*28mm
2.Protection class IP65 available
3.Trigger force 30
4.Launch distance 1.0-2.5mm
5.Mini bending radius R150mm
6.Operating temperature  ­-35~+80
7.Weight ±380g/m
8.Package Carton
9.Approval CE,ROHS
10.Custom Design OEM & ODM







Packing & Shipping

Packed with carton, 100m / roll;

Shipped by Air or Sea



Our service

1. Trade terms: FOB, CIF, EXW, etc.

2. Delivery method: Express, Shipping, Airlines

3. Payment terms: T/T, L/C, PayPal

4. Custom service: Available

5. Sample service: Available



FAQ

1. Why choose us?

Professional---We have been engaged in these products more than 10 years;

Service---One-Stop Solution service.

2. What is a FUTAI Safety Edge?

FUTAI Safety Edge is a touch sensitive switch that sends a signal to start, stop or reverse a motor, and the applications are widely.

3. Where can FUTAI Safety Edges be used?

Anywhere you want a simple touch to send a signal!

4. Do you have the matched accessories?

Yes. We offer One-Stop Solution service and supply the related accessories.

5. How can I get a sample to check your quality?

After price confirmation,you can require for samples to check our quality

If you just need a blank sample to check the quality,we will provide you sample for free, and  freight at your charge.
