R206
Sliding gate safety edge
Price: US$7.5-9.2/m
US$19.8-22.0/Kit
Tel/Whatsapp
Email.
Product Description
Description & Application

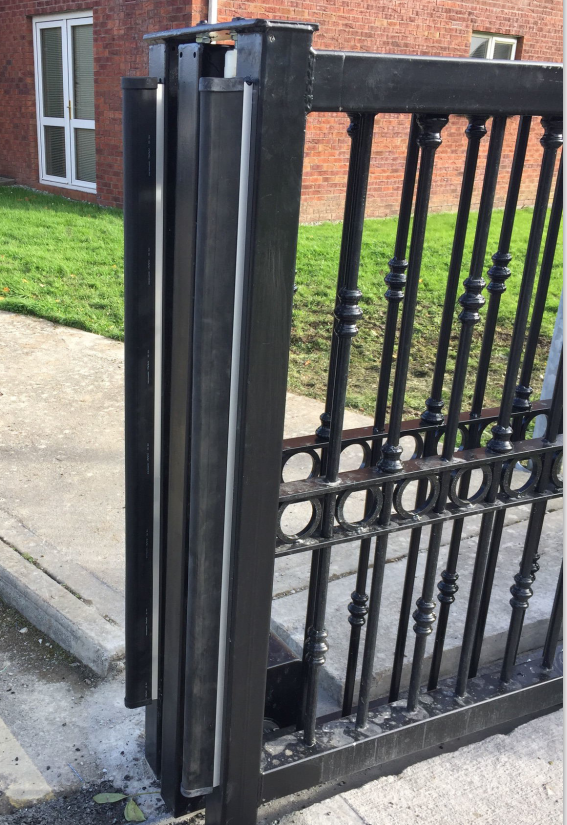

FUTAI safety rubber profile R206 is usually applied to sliding gate and sliding doors. It works with safety sensor strip. This sensitive strip switch is high cost effective and durable, we offer 20years service or 100,000 times using.
Safety rubber R206 is widely application, it’s mainly used on industrial doors and gates, sliding door, sliding gate, revolving door, speed door, gateway, platform, AGV, etc.
Also FUTAI safety contact edge FS-105 is fit for sliding door and gate. It is the biggest size of integrated type. It’s sensitive as for the integrated type and it’s healthy because of its silicone material.
| Technical Data | |
| Product name | Safety edge |
| Item No. | FS-206 |
| Type | Separated type |
| Components | |
| a. Rubber profile R206 | EPDM material,black color |
| b. Inner sensor tape FS-3 | Silicon material,red color by default(FS-13 available) |
| c. End piece C05 | With 250mm cable;Resistance available |
| d. End cap P206 | EPDM material |
| e. Aluminum rail T106 (W*H) | 36mm*13mm, Max length 3M |
| 1.Size (W*H) | 40mm*60mm |
| 2.Protection class | IP65 available |
| 3.Trigger force | ＜25N |
| 4.Launch distance | 6.0-8.0mm |
| 5.Mini bending radius | R300mm |
| 6.Operating temperature | -35℃~+80℃ |
| 7.Weight | ±1020g/m |
| 8.Package | Carton |
| 9.Approval | CE,ROHS |
| 10.Custom Design | OEM & ODM |
Accessories
|
Futai Safety Edge R206 Kit |
||||||
|
Code |
Product name |
Code |
View |
Dimension |
UNIT |
Remark |
|
1 |
Rubber profile |
R206 |
|
|
meter |
15m/roll |
|
2 |
Sensor tape |
FS-3 |
|
16mm*7.5mm |
meter |
100m/roll |
|
3 |
Aluminum Track |
T106 |
|
|
meter |
1-2m/pcs |
|
4 |
Plug |
P-206 |
|
/ |
pair |
|
|
5 |
End cable |
C05 |
|
0.25m cable |
set |
with or without resistor |
Our Service
1. Cut service.
2. Assembly service
3. One-Stop Solution
4. Sample available
FAQ
1. What are the payment terms?
T/T, L/C, Paypal.
2. What is the trade terms?
FOB, CIF, EXW, etc.
3. MOQ and production time?
MOQ 300 meters and 20 days lead time.
4. How long can I expect to get the sample?
3--10days.
