R218


Revolving door safety edge
Price: US$7.5-9.2
MOQ: 50m
Code: R218 + FS-3


Online consultation

Product Description

Description

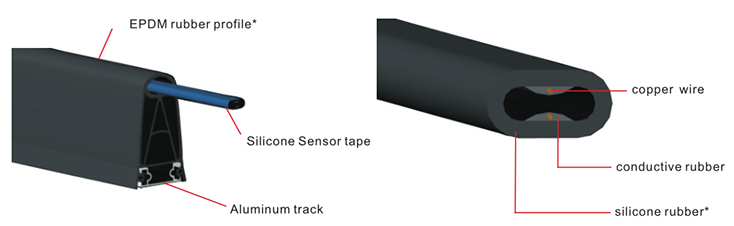

Revolving door safety edge R218 is the biggest size in all edges. R218 is rubber profile, it must work with the safety sensor tape FS-3.

Rubber profile R206 is also suitable for revolving door, it’s smaller, size is 40mm width and 60mm height.

The advantage of this safety rubber edge is durable and has a long service life, we offer 20years service or 100,000 times using.























Technical Data
Product name Safety edge
Item No. FS-218
Type Separated type

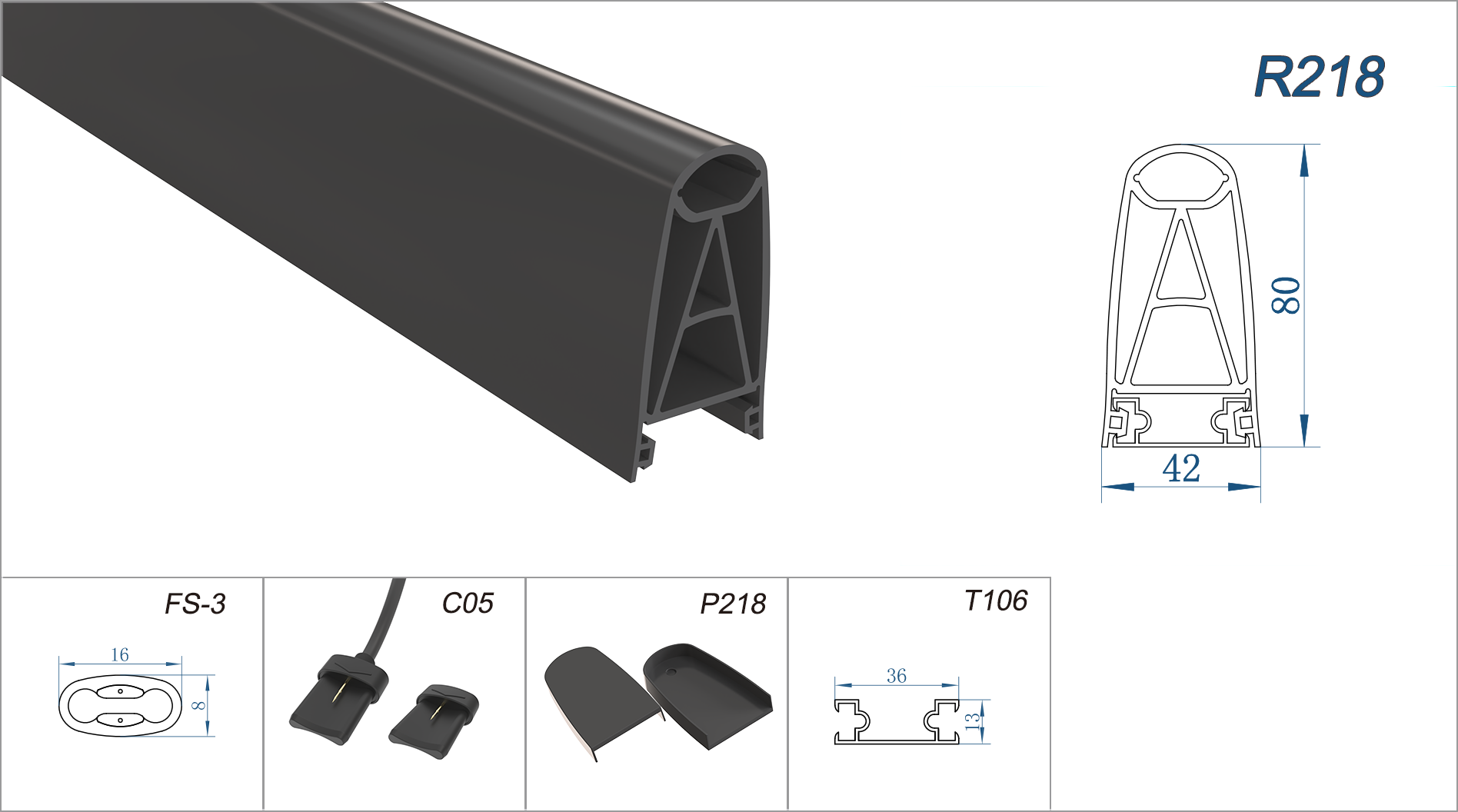

Components
a. Rubber profile R218 EPDM material,black color
b. Inner sensor tape FS-3 Silicon material,red color by default(FS-13 available)
c. End piece C05 With 250mm cable;Resistance available
d. End cap P218 EPDM
e. Aluminum rail T106 (W*H) 36mm*13mm, Max length 3M

1.Size (W*H) 42mm*80mm
2.Protection class IP65 available
3.Trigger force 30N
4.Launch distance 6.5-10.0mm
5.Mini bending radius R500mm
6.Operating temperature ­-35~+80
7.Weight ±1610g/m
8.Package Carton
9.Approval CE,ROHS
10.Custom Design OEM & ODM







Accessories





Application

This pressure sensitive safety edge is widely used on all kinds of automatic revolving doors, such as hotel revolving door, hospital revolving door and government revolving doors.

It also could be applied to big auto doors and gates, for roller shutter door, speed door, industrial doors, sliding gate, gateway , AGV etc.





Packing & Shipping

15 meters per roll.

1roll in one carton by express, I roll in one plastic bag by sea.

● By Express

● Air Transportation

● Sea Transportation.



Our Service

1. Cut service.

2. Professional online within 24 hours and after-sales service

3. One-Stop Solution

4. Sample available



FAQ

1. What is the trade terms?

FOB, CIF, EXW, Etc.

2. What are the payment terms?

T/T, L/C, Western Union, Paypal.

3. What is the delivery port?

Ningbo or Shanghai

4. MOQ and production time?

MOQ 50 meters and 20 days lead time.
