R219
APPLICATIONS Installation on auto production equipments,subway auto door,adjustable bed,Automatic weeding machine,Automatic lifting platform,Robot arm...
Tel/Whatsapp
Email.
Product Description

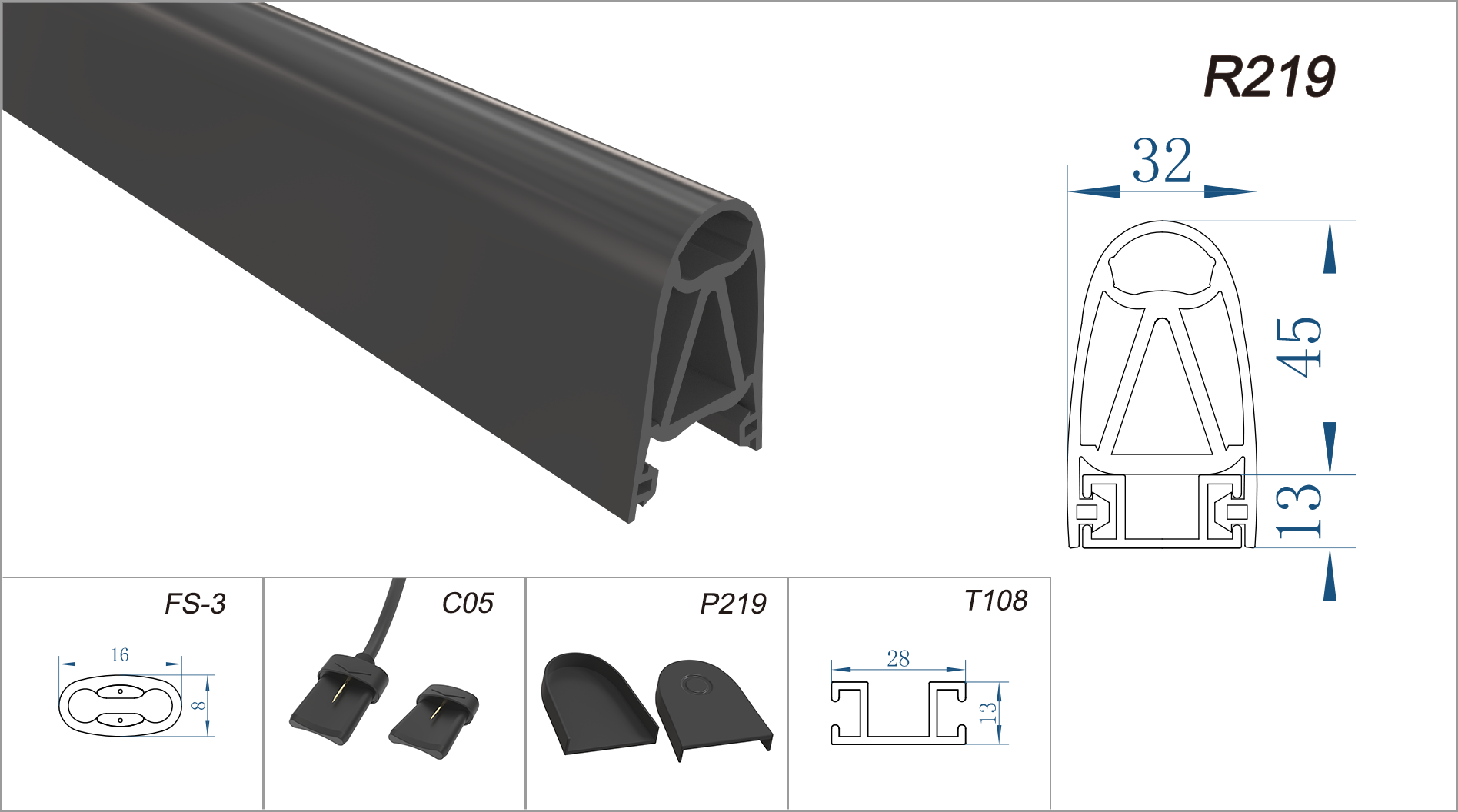

| Technical Data | |
| Product name | Safety edge |
| Item No. | FS-219 |
| Type | Separated type |
| Components | |
| a. Rubber profile R219 | EPDM material,black color |
| b. Inner sensor tape FS-3 | Silicon material,red color by default(FS-13 available) |
| c. End piece C05 | With 250mm cable;Resistance available |
| d. End cap P219 | EPDM material |
| e. Aluminum rail T108 (W*H) | 28mm*13mm,Max length 3M |
| 1.Size (W*H) | 32mm*58mm |
| 2.Protection class | IP65 available |
| 3.Trigger force | ＜40N |
| 4.Launch distance | 4.5-7.0mm |
| 5.Mini bending radius | R300mm |
| 6.Operating temperature | -35℃~+80℃ |
| 7.Weight | ±1180g/m |
| 8.Package | Carton |
| 9.Approval | CE,ROHS |
Application
This pressure sensitive safety edge is widely used on all kinds of automatic revolving doors, such as hotel revolving door, hospital revolving door and government revolving doors.
It also could be applied to big auto doors and gates, for roller shutter door, speed door, industrial doors, sliding gate, gateway , AGV etc.
Packing & Shipping
15 meters per roll.
1roll in one carton by express, I roll in one plastic bag by sea.
● By Express
● Air Transportation
● Sea Transportation.
Our Service
1. Cut service.
2. Professional online within 24 hours and after-sales service
3. One-Stop Solution
4. Sample available
FAQ
1. What is the trade terms?
FOB, CIF, EXW, Etc.
2. What are the payment terms?
T/T, L/C, Western Union, Paypal.
3. What is the delivery port?
Ningbo or Shanghai
4. MOQ and production time?
MOQ 50 meters and 20 days lead time.
