Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of roller door wireless safety edge in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved roller door wireless safety edge, welcome to get free sample and discount information from our factory.

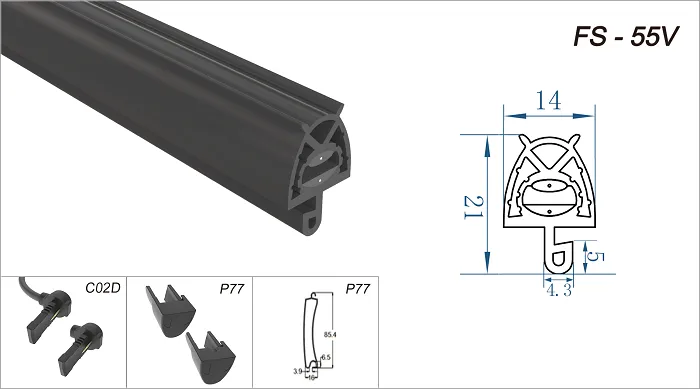

FS-55V roller door wireless safety edge integrated type composed by: integrated sensitive edge FS-55V, end piece C02D, side plug P77.
It belongs to the FS-55 series.The only difference between it and FS-55 is the size of the mounting foot, it is suitable for installation on the door panel.
Technical Data
|
1. Product name |
Integrated Safety Edge |
|
2. Item |
FS-55V |
|
3. Material |
silicon |
|
4. Color |
black |
|
5. Size(W*H) |
W 14.5mm*H 21.5mm |
|
6.Sensor length |
Min.100mm/Max.3000mm |
|
7. Application |
for roller shutter doors |
|
8. End piece |
C02,with standard length 200mm cable,24AWG,resistance available. |
|
9. End Cap |
P77,plastic |
|
10.Rail |
work with door hook slat |
|
11. Approval |
CE,ROHS,ISO9001:2015,TUV |
|
12. Custom Design |
OEM & ODM |
|
13. Protection class |
IP65 (IP67 available) |
|
14. Trigger force |
＜20N(at room temperature 20℃) |
|
15. Launch distance |
1.0-2.0mm |
|
16.Dead zone |
20mm at each end |
|
17.Temperature range |
-40℃~+80℃ |
|
18.Base weight |
±155g/m |
|
19. Packing |
30m/roll |
Application
FUTAI safety edges can be used on all kinds of applications for their varied in height, width and length.
FS-55V roller door wireless safety edge is usually used for Garage Roller Shutter,Roller Door and other automated products with narrow edges.
Packing & Shipping
Why Choose Us?
Because product development is crucial. We can provide a roller door wireless safety edge sample within 3 to 7 working days. This enables you to test the compatibility, functionality and performance before commencing mass production.
Our Profession
1.We are compliant with CE, RoHS, and ISO9001:2015 standards.
2.We have more than 10 years of professional experience in safety edge.
3.We offer a one-year warranty.
Our Service
1.Transportation methods: express delivery, sea freight and air freight.
2.Delivery can be made quickly.
3.Product quality and customer demands are what we care about the most.
4.Joint Development: We can collaborate with customers to develop new types of safety edges.
FAQ
Q: Could you develop customized safety edge solutions for our application?
A: Yes!We can work with you to jointly develop a Safety Edge that suits you.
