Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of electrical safety edge for automatic doors in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved electrical safety edge for automatic doors, welcome to get free sample and discount information from our factory.

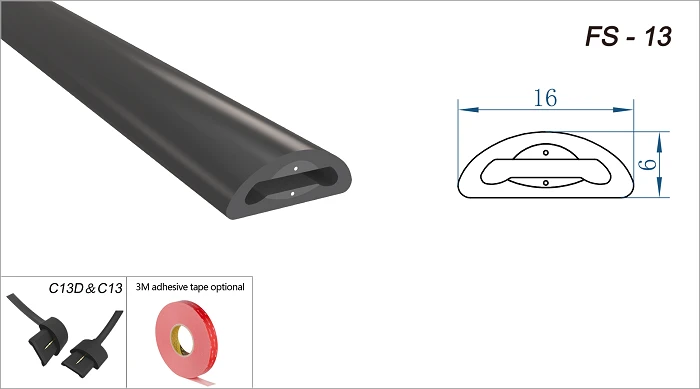

The Electrical safety edge for automatic doors FS-13 is one of the most frequently sourced products in European countries. The product is available in two configurations based on manufacturing process: integrated injection molding or adhesive bonding.It is also available with integrated loops for mounting. It is widely used for collision and pinch protection on public transportation doors. Featuring a flat bottom, it can optionally be equipped with 3M adhesive. Like the FS-3, it is also commonly used in combination with rubber profiles for applications such as lifting platforms, automated equipment, CNC machines, AGVs, and more
Technical Data
|
1. Product name |
Safety Sensor tape |
|
2. Item |
FS-13 |
|
3. Material |
silicon |
|
4. Color |
black or red |
|
5. Size |
W 16mm * H 8mm |
|
6.Sensor length |
Min.50mm, Max.100m |
|
7. Base |
Be used alone with 3M adhesive tape Or work with rubber profiles |
|
8. End piece |
C13 with standard length 200mm cable; resistance available. |
|
9. Wire |
26AWG, UL certified |
|
10. Approval |
CE & RoHS; ISO9001:2015; TUV |
|
11. Custom Design |
OEM & ODM |
|
12. Protection class |
IP67 |
|
13.Trigger force |
＜10N (at room temperature 20℃) |
|
14.Tensile force |
>60N |
|
15. Launch distance |
2.1mm±0.4mm |
|
16.Dead Zone |
±20mm at each end |
|
17.Operating temperature |
25℃~+60℃ |
|
18.Storage temperature |
-40℃~+80℃ |
|
19. Base weight |
±80g/m |
|
20. Packing |
100m/roll |
|
21.Mini bending radius |
R50mm |
Application
The Electrical safety edge for automatic doors FS-13 sensitive safety edge is designed for applications such as lifting platforms, automated equipment, CNC machines, AGVs, and more.
Our Service
1. Assembly service
2. Cut service.
3. Hole service
4. Sample available (Less than 1 meter for free)
5. Customize service
5. Electrical safety edge for automatic doors One-Stop Solution
FAQ
Q: What is the trade terms?
A: FOB, FCA,DAP,CIF,CPT,EXW...
Q: MOQ and production time?
A: MOQ 100 meters or 100 pcs, 10-20 days lead time.
Q: How long can I expect to get the sample?
A: 3--10days.
