Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of pressure sensitive safety edge in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved pressure sensitive safety edge, welcome to get free sample and discount information from our factory.
• Versatile Compatibility: FUTAI pressure sensitive safety edge are designed for use on automatic doors, industrial shutters, garage doors, sliding gates, buses, robots, RGVs, and various types of machinery.
• Flexible Installation: The sensor tape can also be directly applied to robots without the need for a rubber profile, utilizing its integrated adhesive backing.
Technical Data
|

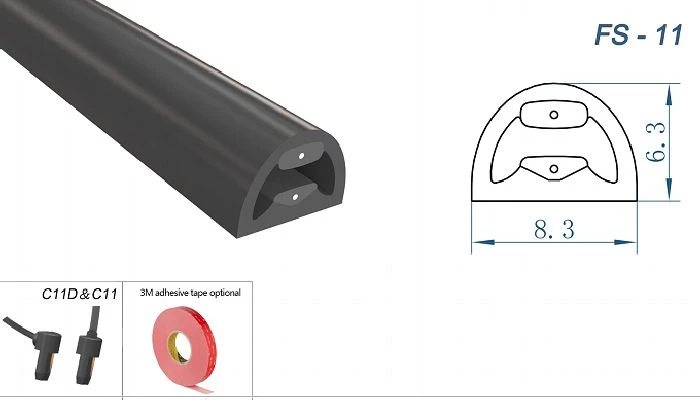

1. Product name |
Safety Sensor tape |
|
2. Item |
FS-11 |
|
3. Material |
silicon |
|
4. Color |
black |
|
5. Size |
W 8.3mm * H 6.3mm |
|
6.Sensor length |
Min.50mm, Max.100m |
|
7. Base |
Be used alone with 3M adhesive tape Or work with rubber profiles |
|

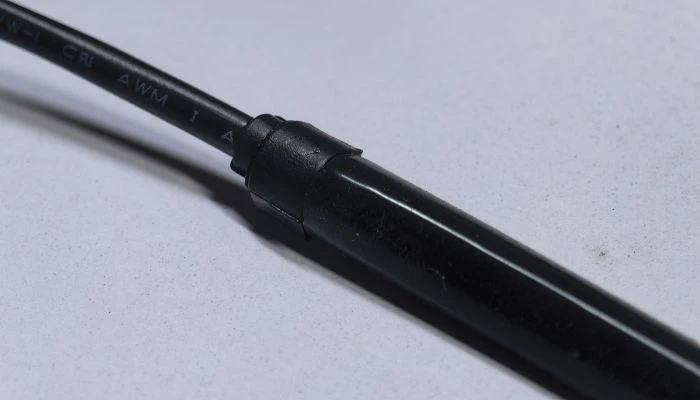

8. End piece |
C11 with standard length 200mm cable; resistance available. |
|
9. Wire |
28AWG, UL certified |
|
10. Approval |
CE & RoHS; ISO9001:2015; TUV |
|
11. Custom Design |
OEM & ODM |
|
12. Protection class |
IP67 |
|
13.Trigger force |
＜20N (at room temperature 20℃) |
|
14.Tensile force |
>30N |
|
15. Launch distance |
1.5mm±0.4mm |
|
16.Dead Zone |
±20mm at each end |
|
17.Operating temperature |
-25℃~+60℃ |
|
18.Storage temperature |
-40℃~+80℃ |
|
19. Base weight |
±35g/m |
|
20. Packing |
100m/roll |
Application
The pressure sensitive safety edge FS-11 is designed for use on roller shutters, garage doors, and industrial doors, in conjunction with compatible rubber profiles R102 and R103.
Our Service
1. Assembly service
2. Cut service.
3. Hole service
4. Sample available (Less than 1 meter for free)
5. Customize service
5. pressure sensitive safety edge One-Stop Solution
FAQ
Q: What is the trade terms?
A: FOB, FCA,DAP,CIF,CPT,EXW...
Q: MOQ and production time?
A: MOQ 100 meters or 100 pcs, 10-20 days lead time.
Q: How long can I expect to get the sample?
A: 3--10days.
