Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of round safety edge in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved round safety edge, welcome to get free sample and discount information from our factory.

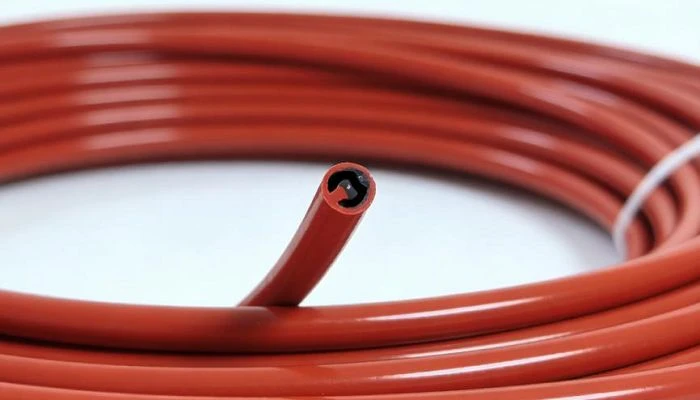

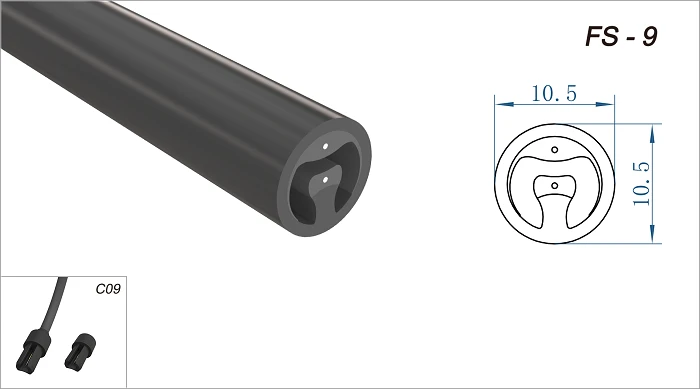

FS-9 round safety edge comes with rubber strips, FS-9 and End piece C09.It is round and very flexible.
Specialized for short response times and low installation clearances, our miniature safety edges provide nearly invisible protection at critical pinch and shear points. However, our primary emphasis always remains on unwavering reliability.
With exceptional elasticity, long-term durability, and a commitment to 20 years of service or 100,000 actuations, FUTAI Safety Edges stand as a safe, flexible, reliable, and supremely cost-effective solution.
Technical Data
|
1. Product name |
Safety Sensor tape |
|
2. Item |
FS-9 |
|
3. Material |
silicon |
|
4. Color |
red |
|
5. Size |
Round shape, D10.5mm |
|
6.Sensor length |
Min.50mm, Max.100m |
|
7. Base |
Work with rubber profiles |
|
8. End piece |
C09 with standard length 200mm cable; |
|
9. Wire |
26AWG, UL certified |
|
10. Approval |
CE & RoHS; ISO9001:2015; TUV |
|
11. Custom Design |
OEM & ODM |
|
12. Protection class |
IP67 |
|
13.Trigger force |
＜30N (at room temperature 20℃) |
|
14.Tensile force |
>60N |
|
15. Launch distance |
6.6mm±0.4mm |
|
16.Dead Zone |
±15mm at each end |
|
17.Operating temperature |
25℃~+60℃ |
|
18.Storage temperature |
-40℃~+80℃ |
|
19. Base weight |
±70g/m |
|
20. Packing |
100m/roll |
|
21.Mini bending radius |
R35mm |
Application
Customize the height, width, and length of FUTAI safety edges to fit your specific application. Their adaptable design ensures universal compatibility.
FS-9 round safety edge serve critical protection needs in the following applications:
- Preventing collisions between automated moving elements and people or objects.
- Enhancing passenger safety in the entry and exit zones of buses and trains.
- Utilized by leading automotive manufacturers to secure power lift gates and sliding doors across all vehicle types-including new-mobility platforms.
Packing & Shipping
Why Choose Us?
Our Profession
FUTAI Safety edge has obtained CE, RoHS, and GB/T19001-2016/ISO9001:2015 standards, and we leverage over ten years of hands-on experience to meet the highest demands of safety and performance.
Our Service
1.We ship via Express, Air, and Sea.
2.Fast delivery service.
3.Responsive Support: Respond to after-sales requests within 12 hours.
4.Free samples offered for lengths within 1 meter.
5.Core Principle: "Quality First, Customer First."
6.We have professional installation guidance.
