Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of roller shutter safety edge in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved roller shutter safety edge, welcome to get free sample and discount information from our factory.

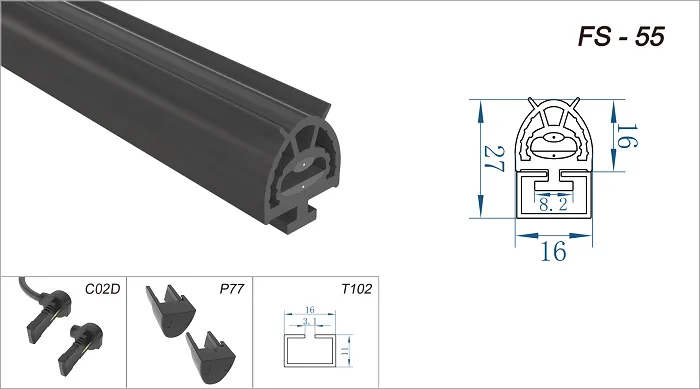

FS-55 Roller Shutter safety edge integrated type composed by: safety edge FS-55, end piece C02D, side plug P77 and aluminum rail T102.
This model has two sealing ears, which can enhance the sealing and dust-proof effects.
FUTAI Safety Edges are safety, flexible, reliable and highly cost effective, they are not only good elastic but also durable, we offer 20 years service or 100,000 times using and one-year warranty.
Technical Data
|
1. Product Name |
Integrated Safety Edge |
|
2. Item |
FS-55 |
|
3. Material |
silicon |
|
4. Color |
black |
|
5. Size(W*H) |
W 16mm*H 27mm |
|
6.Sensor length |
Min.100mm/Max.3000mm |
|
7. Application |
for roller shutter doors |
|
8. End Piece |
C02,with standard length 200mm cable,24AWG,resistance available. |
|
9. End Cap |
P77,plastic |
|
10.Rail T102 |
Aluminium |
|
11.Rail Size |
W 16mm*H 11mm |
|
12. Approval |
CE,ROHS,ISO9001:2015,TUV |
|
13. Custom Design |
OEM & ODM |
|
14. Protection class |
IP65 (IP67 available) |
|
15. Trigger force |
＜20N(at room temperature 20℃) |
|
16. Launch distance |
1.0-2.0mm |
|
17.Dead zone |
20mm at each end |
|
18.Temperature range |
-40℃~+80℃ |
|
29.Base weight |
±180g/m |
|
20. Packing |
30m/roll |
Application
FUTAI safety edges can be used on all kinds of applications for their varied in height, width and length.
FS-55 Roller Shutter safety edge is usually used for Roller Shutter and other automated products with narrow edges.
Packing & Shipping
Why Choose Us?
Our Roller Shutter safety edge is designed in an intuitive manner. Installation is very simple. No special tools are required, nor are complex wiring diagrams needed. Your installation time will be reduced.
Our Profession
1.Since our establishment, we have been focusing on the field of high-quality safety edges.
2.We have also obtained the CE, RoHS, and GB/T19001-2016/ISO9001:2015 certifications.
3.We have over 10 years of experience in the field of safety edges.
Our Service
1.Delivery method: By Express, By Air, By Sea.
2.Trade terms: FOB/FCA, CIF/CPT, EXW, Etc
3.Fast delivery is available.
4.Custom service
5.Samples: Free for length within 1 meter.
6.Our company philosophy is:"Quality First, Customer First".
Hot Tags: roller shutter safety edge, China roller shutter safety edge manufacturers, suppliers, factory
