Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of window shutter safety edge in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved window shutter safety edge, welcome to get free sample and discount information from our factory.
FS-38 window Shutter safety edge Integrated type composed by: integrated safety edge FS-38, end pieceC38D and aluminum rail T101.
On both sides of FS-38, there are sealing ears, which enhance the sealing effect.
Combining safety, flexibility, reliability, and cost-effectiveness, we guarantee their performance for up to 20 years or 100,000 uses.
Technical Data
|
1. Product name |
Integrated Safety Edge |
|
2. Item |
FS-38 |
|
3. Material |
silicon |
|
4. Color |
black |
|
5. Size(W*H) |
W 12mm*H 15mm |
|
6.Sensor length |
Min.100mm/Max.3000mm |
|
7. Application |
for automatic door |
|
8. End piece C38D |
C02,with standard length 200mm cable,24AWG,resistance available. |
|
9. End cap |
sealed with sealent |
|
10. Rail T101 |
Aluminium |
|
11.Rail Size |
W 8mm*H 7mm |
|
12. Approval |
CE,ROHS,ISO9001:2015,TUV |
|
13. Custom Design |
OEM & ODM |
|
14. Protection class |
IP65 (IP67 available) |
|
15. Trigger force |
＜20N(at room temperature 20℃) |
|
16. Launch distance |
1.0-2.0mm |
|
17.Dead zone |
20mm at each end |
|
18.Temperature range |
-40℃~+80℃ |
|
19.Base weight |
±65g/m |
|

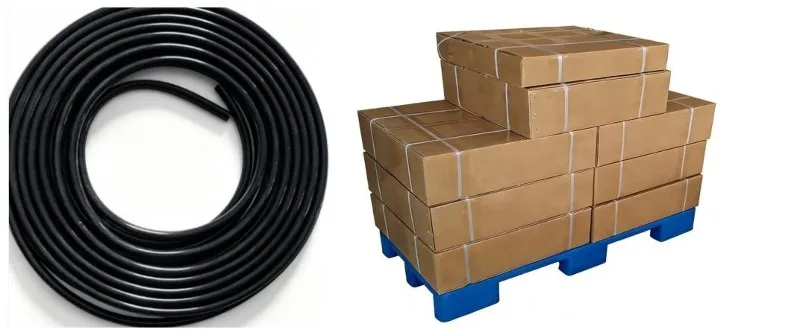

20. Packing |
100m/roll |
Application
With customizable dimensions in height, width, and length, FUTAI safety edges can be adapted to virtually any application.
FS-38 window Shutter safety edge is commonly used for narrow-edge applications such as Window Shutter and other automated products.
Packing & Shipping
Why Choose Us?
Our Profession
1.We have been concentrating on the safety edge.
2.We have obtained the CE, RoHS, and GB/T19001-2016/ISO9001:2015 certifications.
3.Promptly reply within 1 hour.
Our Service
1.Ship the goods by express delivery, air freight or sea freight.
2.Our prices very affordable.
3.1 set for sample order also can be accepted.
4.The average time limit is about 3-10 days,shipping and other bulk orders are expected to arrive in 20-30 days.
FAQ
Q: Is a small trial order available before placing bulk purchases?
A: Absolutely. We welcome trial orders. You may start with 2-3 meters to test fit and installation. You can easily scale up to bulk orders later if satisfied. Flexible MOQ, low risk and no purchase pressure.
