Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of mini rubber safety edge sensor in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved mini rubber safety edge sensor, welcome to get free sample and discount information from our factory.
FUTAI Mini rubber safety edge sensor R101 TPE safety edge similar with Safety edge FS-37 for barrier sensor or robot. It is combined of a TPE rubber profile and a silicone sensor strip. Waterproof can reach IP65 and mini bending radius R40mm. Can be N/O or N/C, with 8.2kohm resistor or without. The cable length can be customized to be 0.5, 1.0 or 1.5 meter or any length. Laser printing or silk printing logos are also available.
Technical Data
|
Product name |
Safety edge |
|
Item NO. |
FS-101 |
|
Type |
Separated type |
|
Sensor length |
Max.3000mm, Min.200mm |
Components
|

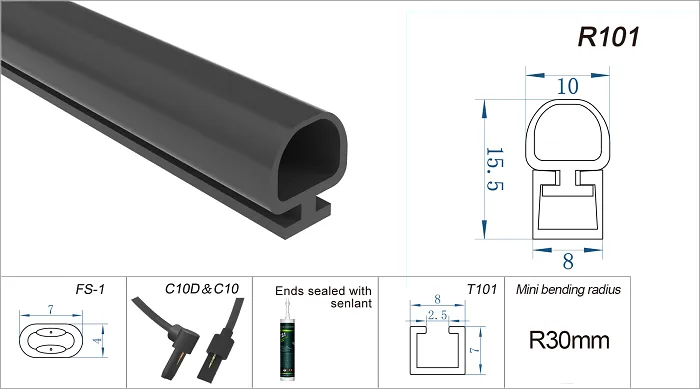

a. Rubber outer profile R101 |
EPDM material,black color |
|
b. Inner sensor tape FS-1 |
Silicon material,Black color(FS-5 available) |
|
c. End piece C10 |
With standard length 200mm cable;28AWG |
|
d. End cap |
Sealed with sealant |
|
e. Rail T101 |
Black, Aluminum,W 8mm*H 7mm,Max length 3M |
|
1.Size |
W 8mm*H 15.5mm |
|
2.Protection class |
IP65,IP67 available |
|
3.Trigger force |
＜20N( at room temperance 20℃) |
|
4.Launch distance |
1.0-2.5mm |
|
5.Mini bending radius |
R40mm |
|
6.Dead zone |
±20mm at each end |
|
7.Wire-out direction |
Straight lead default |
|
8.Temperature range |
-40℃+80℃ |
|
9. Base weight |
±155g/m |
|
10.Package |
Carton,＜3m/pc |
|
11.Approval |
CE,ROHS,ISO9001:2015,TUV |
|
12.Custom Design |
OEM & ODM |
Accessories

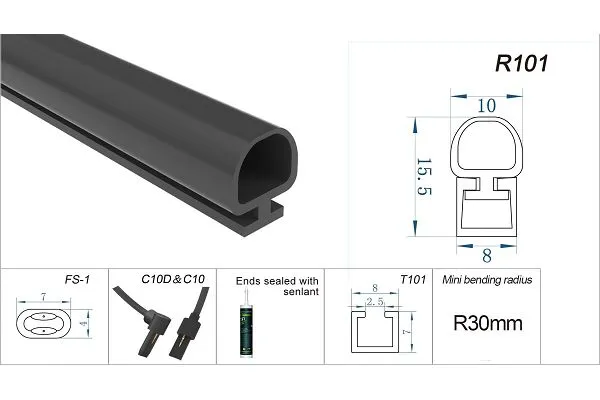

Futai Safety Edge R101 Kit
|
Code |
Product name |
Code |
View |
Dimension |
UNIT |
Remark |
|
1 |
Rubber profile |
R101 |
|
|
meter |
100m/roll |
|
2 |
Sensor tape |
FS-1 |
|
7mm*4mm |
meter |
100m/roll |
|
3 |
Aluminum Track |
T101 |
|
|
meter |
1-2m/pcs |
|
4 |
Plug |
|
|
Ends sealed with senlant |
pair |
|
|
5 |
End cable |
C10 |
|
0.20m cable |
set |
with or without resistor |
Packing & Shipping
Our Service

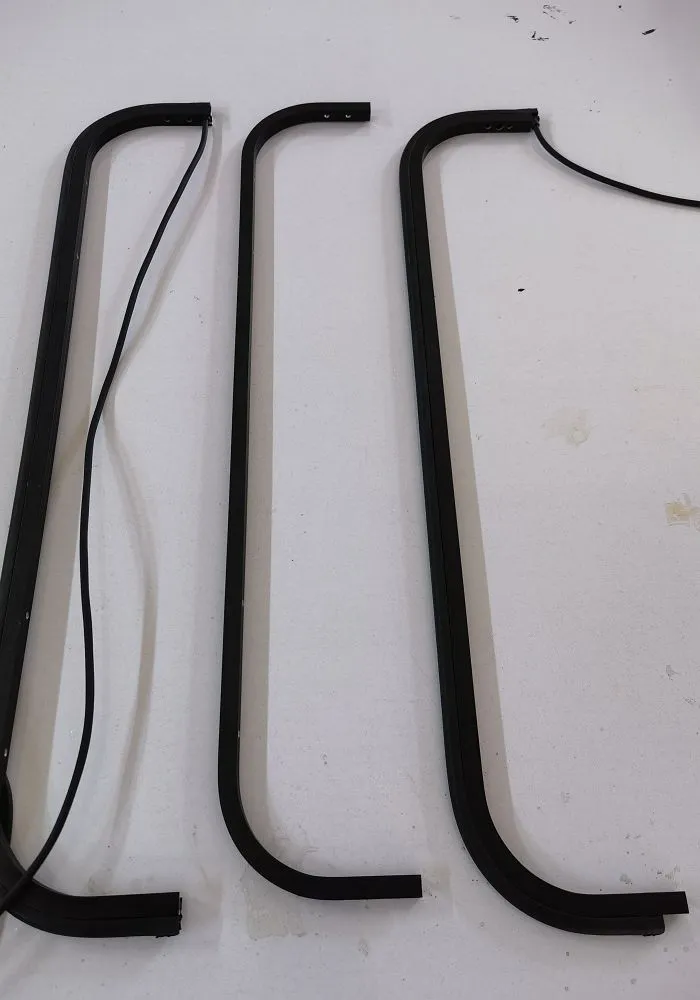

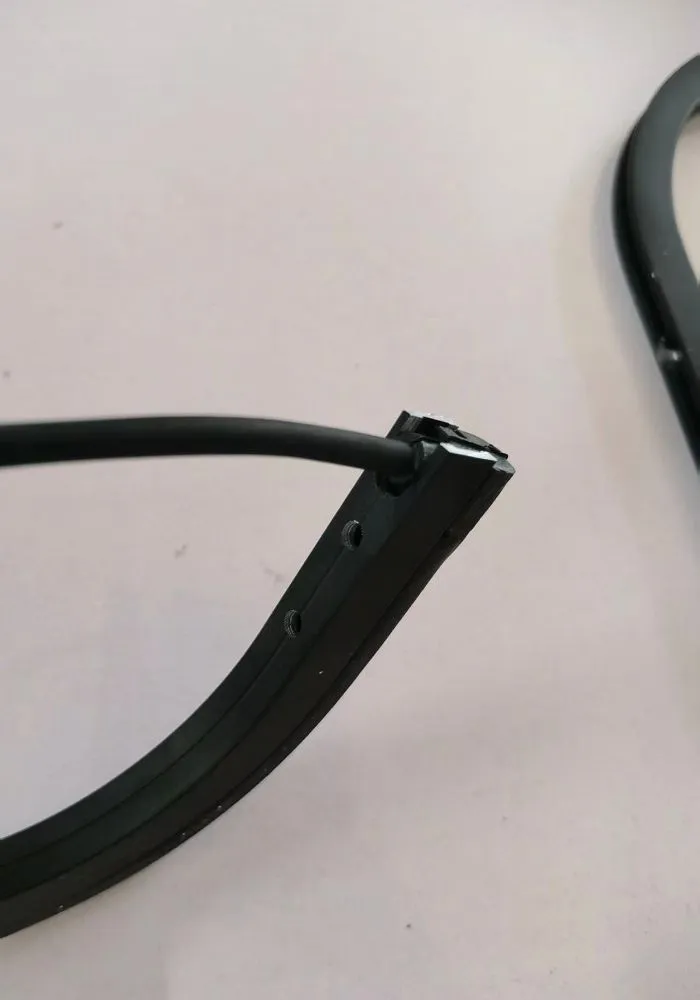

1. Fitting.
2. Cutting.

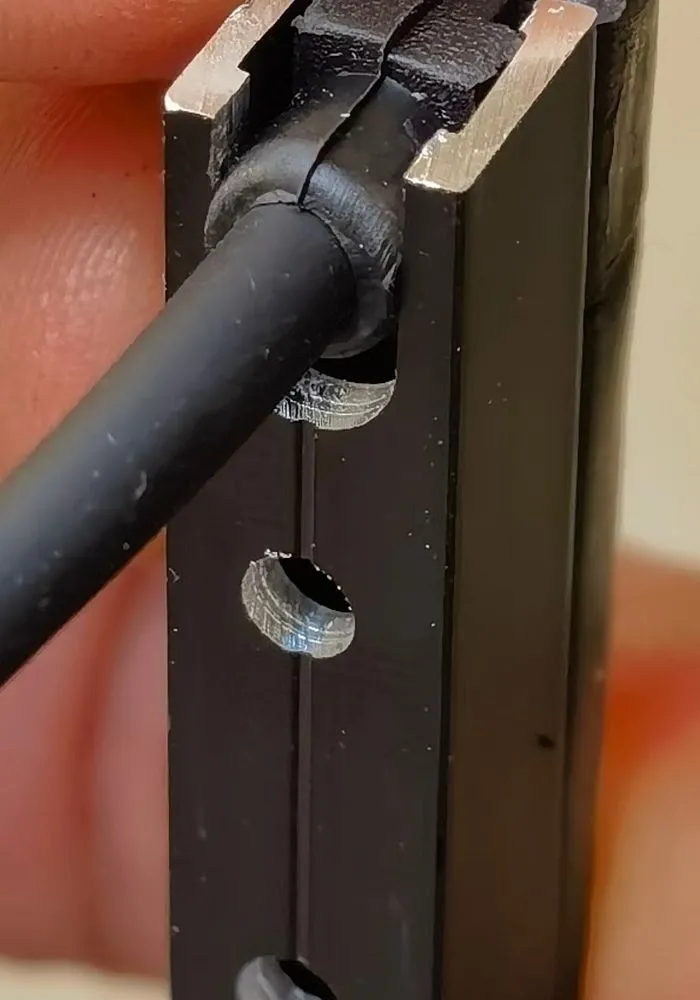

3. Boring.
4. Sample available (Free sample for lengths under 1 meter)
5. Customization.
6. Mini rubber safety edge sensor All-in-one.
FAQ
Q: What is the trade terms?
A: FOB, FCA,DAP,CIF,CPT,EXW...
Q: MOQ and production time?
A: Mini rubber safety edge sensor MOQ 1000 meters or 500 pcs, 10-30 days lead time.
Q: How long can I expect to get the sample?
A: After payment 3--10days.
Q: Do you have the matched accessories?
A: Yes, we offer One-Stop Solution service, and we supply the related accessories, such as Alum rail, end cable and plugs.
Q: What is the delivery port?
A: Ningbo or Shanghai or Shenzhen
Q: What's your advantage?
A: More than 10 years product experience.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
