Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of rubber sensing edge for lifting platform in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved rubber sensing edge for lifting platform, welcome to get free sample and discount information from our factory.
FUTAI safety rubber profile FS-229 is usually applied to lifting platform. It works with safety sensor strip. This sensitive strip switch is high cost effective and durable, we offer 20years service or 100,000 times using. It also named rubber sensing edge for lifting platform.
Technical Data
|
Product name |
Safety edge |
|
Item No. |
FS-203 |
|
Type |
Separated type |
|
Sensor length |
Max.3000mm, Min.200mm |

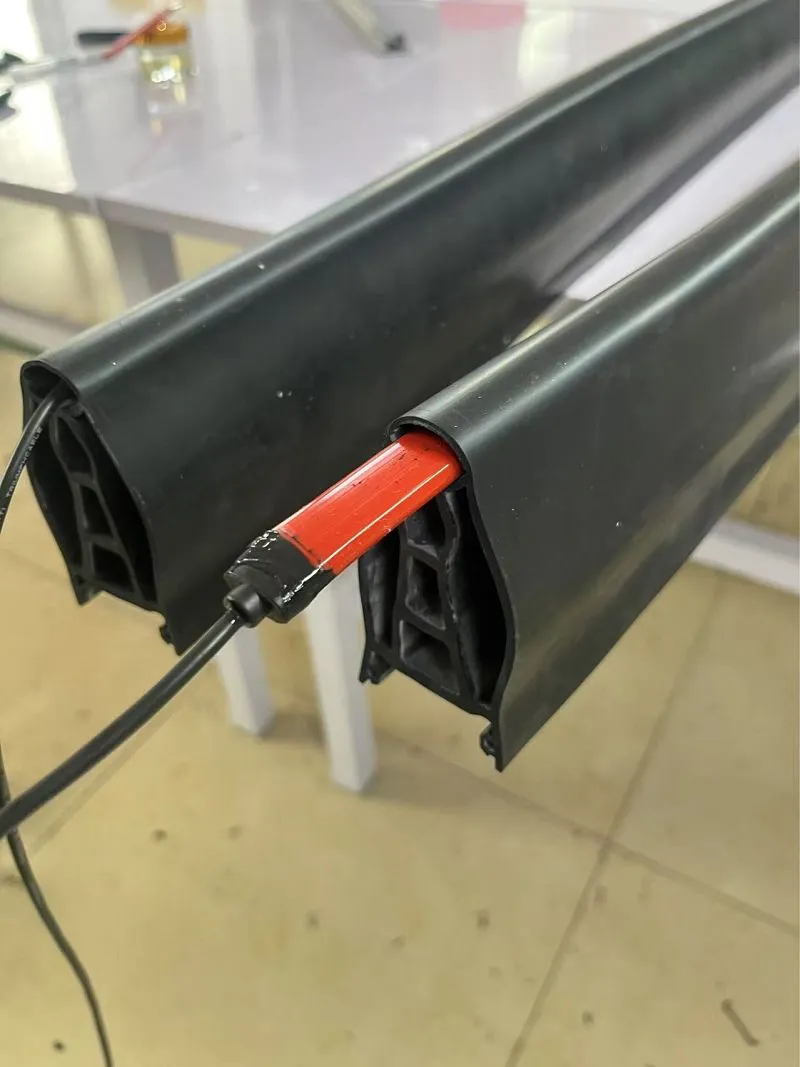

Components
|
a. Rubber outer profile R229 |
TPE material,black color |
|
b. Inner sensor tape FS-3 |
Silicon material, Black color |
|

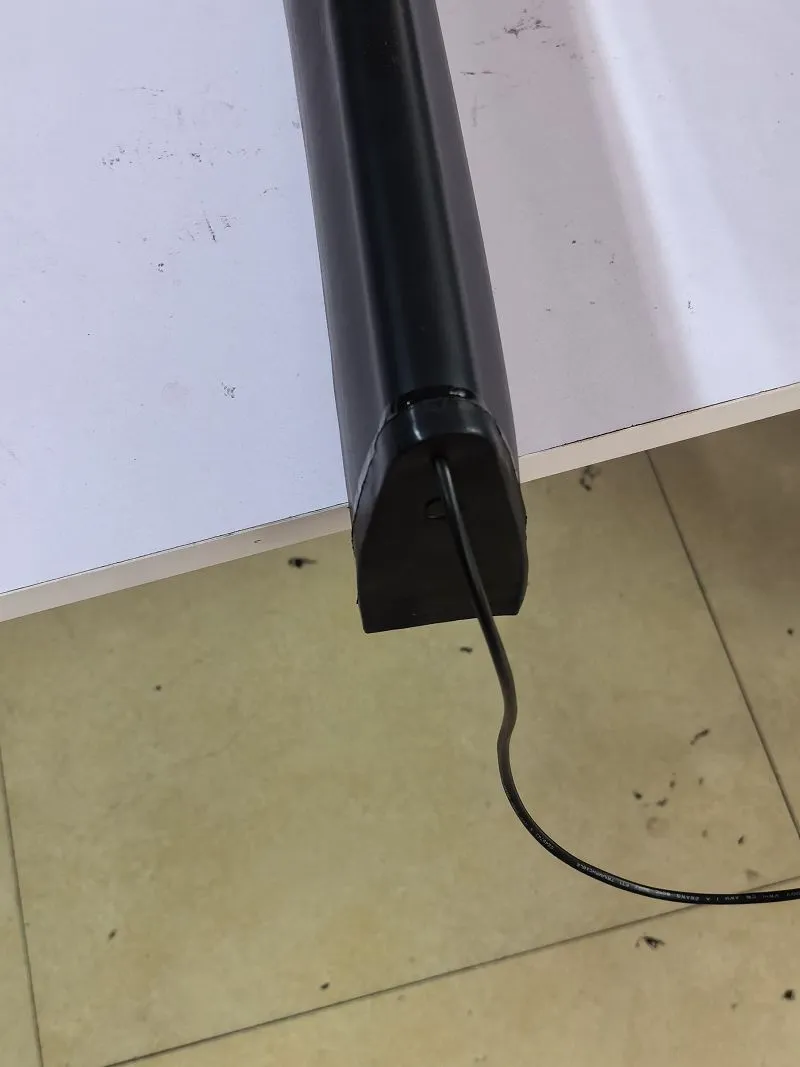

d. End cap P229 |
TPE material |
|
e. Rail T106 |
Aluminum,W 36mm*H 13mm, Max length 3M |
|
1.Size |
W 40mm* H 100mm |
|
2.Protection class |
IP65,IP67 available |
|
3.Trigger force |
＜40N( at room temperance 20℃) |
|
4.Launch distance |
6.0-8.0mm |
|
6. Dead zone |
±30mm at each end |
|
7.Wire-out direction |
Straight lead default |
|
8.Temperature range |
-40℃+80℃ |
|
9.Base weight |
±3700g/m |
|
10.Package |
Carton;＜3m/pc |
|
11.Approval |
CE,ROHS,ISO9001:2015,TUV |
|
12.Custom Design |
OEM & ODM |
Accessories
Futai Safety Edge FS-220 Kit
|
Code |
Product name |
Code |
View |
Dimension |
UNIT |
Remark |
|
1 |
Rubber profile |
R229 |
|
|
meter |
15m/roll |
|
2 |
Sensor tape |
FS-3 |
|
|
meter |
100m/roll |
|
3 |
Aluminum Track |
T106 |
|
|
pc |
100m/roll |
|
4 |
Plug |
P206 |
|
pair |
1-2m/pcs |
|
|
5 |
End cable |
C11 |
|
0.25m cable |
set |
with or without resistor |
Packing & Shipping
Our Service
1. Assemble.
2. Rubber sensing edge for lifting platform Cutting.
3. Hole drilling
4. Sample available.
5. Customized
6. Rubber sensing edge for lifting platform One-Stop Solution
FAQ
Q: What is the trade terms?
A: FOB, FCA,DAP,CIF,CPT,EXW...
Q: MOQ and production time?
A: MOQ 100 meters or 100 pcs, 15-20 days lead time.
Q: How long can I expect to get the sample?
A: 5-7 days.
Q: What is the delivery port?
A: Ningbo or Shanghai
Q: What's your advantage?
A: More than 10 years product experience with rubber sensing edge for lifting platform.
Q: Where is our factory located? How can I visit there?
A: Our factory is located in Ningbo City ,Zhejiang Province,China. You are warmly welcomed to visit us.
