Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of rubber safety edge for gates in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved rubber safety edge for gates, welcome to get free sample and discount information from our factory.
Rubber safety edge for gates R201 works with Safety sensor tape FS-11 and FS-2.
It is mini bending radius 150mm.
The advantage of this rubber strip:
1. High cost effective, it's not big and heavy, and fit for speed door.
2. It is long service life for the outer rubber profile.
Technical Data
|
Product name |
Safety edge |
|
Item No. |
FS-201 |
|
Type |
Separated type |
|
Sensor length |
Max.3000mm, Min.200mm |

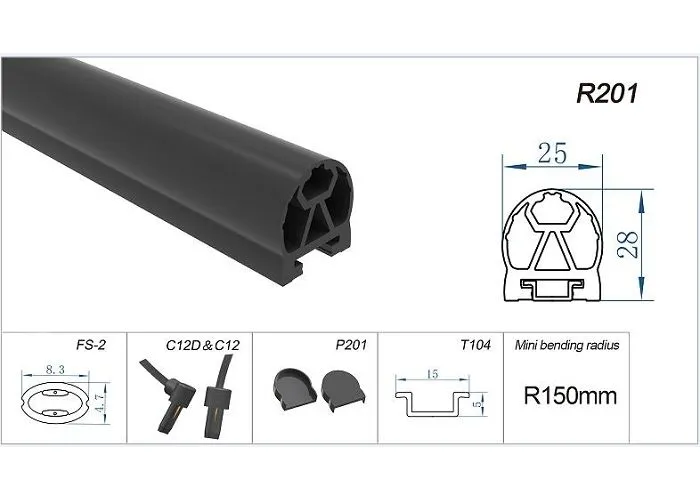

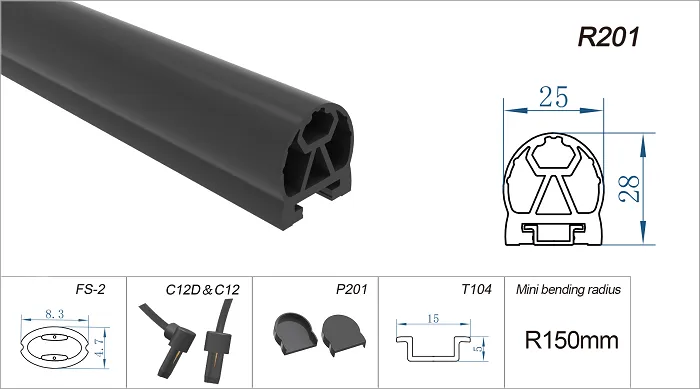

Components
|
a. Rubber outer profile R201 |
EPDM material,black color |
|
b. Inner sensor tape FS-2 |
Silicon material,Black color (FS-11 available) |
|
c. End piece C12 |
With standard length 200mm cable;28AWG |
|
d. End cap P201 |
EPDM material |
|
e. Rail T104 |
Aluminum,W 15mm*H 5mm,Max length 3M |
|
1.Size |
W 25mm*H 28mm |
|
2.Protection class |
IP65,IP67 available |
|
3.Trigger force |
＜30N( at room temperance 20℃) |
|
4.Launch distance |
2.5-4.5mm |
|
5.Mini bending radius |
R150mm |
|
6. Dead zone |
±20mm at each end |
|
7.Wire-out direction |
Straight lead default |
|
8.Temperature range |
-40℃+80℃ |
|
10.Base weight |
±450g/m |
|
11.Package |
Carton;＜3m/pc |
|
12.Approval |
CE,ROHS,ISO9001:2015,TUV |
|
13.Custom Design |
OEM & ODM |
Accessories
Futai Safety Edge FS-201 Kit
|
Code |
Product name |
Code |
View |
Dimension |
UNIT |
Remark |
|
1 |
Rubber profile |
R201 |
|
|
meter |
15m/roll |
|
2 |
Sensor tape |
FS-2 |
|
|
meter |
100m/roll |
|
3 |
Aluminum Track |
T104 |
|
|
meter |
1-2m/pcs |
|
4 |
Plug |
P201 |
|
/ |
pair |
|
|
5 |
End cable |
C12 |
|
0.20m cable |
set |
with or without resistor |
Packing & Shipping
- By Express
- Air Transportation
- Sea Transportation
Our Service
1. Assembly service
2. Cutting service.
3. Rubber safety edge for gates Making hole service
4. Sample available (Free sample within 1 meter)
5. Customize service
5. All-in-one service
FAQ
Q: What is the trade terms?
A: FOB, FCA,DAP,CIF,CPT,EXW...
Q: MOQ and production time?
A: R ubber safety edge for gates MOQ 100 meters or 100 pcs, 10-15 days lead time.
Q: How long can I expect to get the sample?
A: After payment 3-5 days.
Q: What is the delivery port?
A: Ningbo or Shanghai
Q: What's your advantage?
A: High precision&quality control
Q: Can you offer OEM/ODM?
A: Yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.
Q: Can I have a sample?
A: It depends on Rubber safety edge for gates products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.
