Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of rubber safety edge for auto machine tool in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved rubber safety edge for auto machine tool, welcome to get free sample and discount information from our factory.
Safety edge FS-304
FS-304 named Rubber safety edge for auto machine tool,It's hot product and used widely with Snap-in foot. This rubber profile works with Safety sensor tape FS-13. And same as FS-103 it widely used on robot and AGV and automatic equipment,the mini bending radius R50mm.
The advantage of this Safety contact edge:
1. The bottom design is easy to install on the aluminum track.
2. It is long service life for the outer rubber profile.
Technical Data
|
Product name |
Safety edge |
|
Item No. |
FS-304 |
|
Applications |
For most automation |
|
Type |
Separated type |
|
Sensor length |
Max.3000mm, Min.200mm |

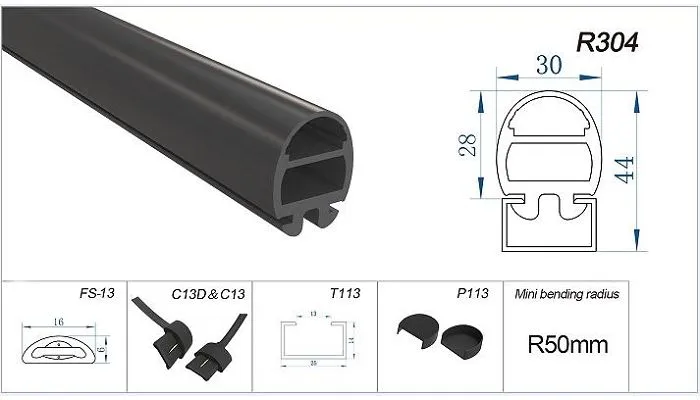

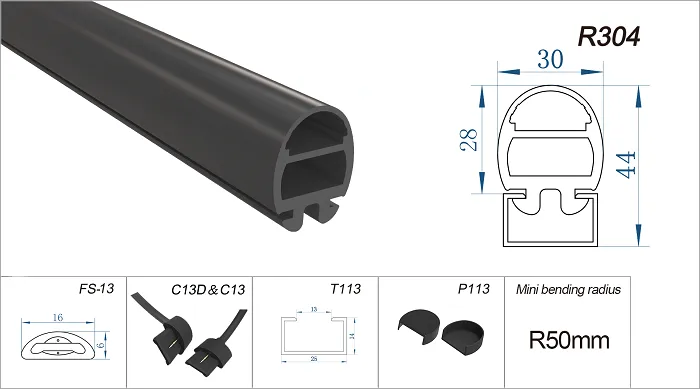

Components
|
a. Rubber outer profile R304 |
EPDM material,black color |
|
b. Inner sensor tape FS-13 |
Silicon material,black color by default |
|
c. End piece C13 |
With standard length 200mm cable;24AWG,Resistance available |
|
d. End cap P113 |
NBR material |
|
e. Rail T113 |
Aluminum,W 25mm*H 14mm,Max length 3M |
|
1.Size |
W 30mm*H 44mm |
|
2.Protection class |
IP65,IP67 available |
|
3.Trigger force |
＜40N ( at room temperance 20℃) |
|
4.Launch distance |
6.0-8.0mm |
|
5.Mini bending radius |
R50mm |
|
6.Dead zone |
±20mm at each end |
|
7.Wire-out direction |
Straight lead default |
|
8.Voltage |
9V-30V |
|
9.Switching current |
Max.30mA, Min.1mA |
|
10.Temperature range |
-40℃+80℃ |
|
11.Base weight |
±905g/m |
|
12.Package |
Carton;＜3m/pc |
|
13.Approval |
CE,ROHS,ISO9001:2015,TUV |
|
14.Custom Design |
OEM & ODM |
Accessories
Futai Safety Edge FS-304 Kit
|
Code |
Product name |
Code |
View |
Dimension |
UNIT |
Remark |
|
1 |
Rubber profile |
R304 |
|
|
meter |
15m/roll |
|
2 |
Sensor tape |
FS-13 |
|
|
meter |
100m/roll |
|
3 |
Aluminum Track |
T113 |
|
|
meter |
1-2m/pcs |
|
4 |
Plug |
P113 |
|
/ |
pair |
|
|
5 |
End cable |
C13 |
|
0.20m cable |
set |
with or without resistor |
Packing & Shipping
Our Service
1. Assembly service
2. Cut service.
3. Hole service
4. Sample available (within 1 meter)
5. Rubber safety edge for auto machine tool Build-to-spec service
FAQ
Q: What is the trade terms?
A: FOB, FCA,DAP,CIF,CPT,EXW...
Q: MOQ and production time?
A: MOQ 100 meters or 100 pcs, 10-20 days lead time.
Q: How about our delivery time?
A: According to your order's quantity.Usually 3-7 days.
Q: Do you have the matched accessories?
A: Yes, we offer Rubber safety edge One-shop Solution service, and the related accessories.
Q: What's your advantage?
A: High precision & quality control – Every product undergoes strict multi point inspection.
Q: Hong Long time the customer can get the new price after get your inquiry?
A: Usually , It is only one hour is ok for us , because we are factory , we caculate the price by ourself.
Q: Do we provide sample for free?
A: Yes , we provide the Rubber safety edge sample within 1 meter to you for free , you only paid for the delivery freight is ok.
