Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of rubber sensitive edge for machine in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved rubber sensitive edge for machine, welcome to get free sample and discount information from our factory.
FUTAI Rubber sensitive edge for machine FS-102 also same as FS-55 is usually applied to rolling shutter door. It works with safety sensor strip. This sensitive strip switch is high cost effective and durable, we offer 20years service or 100,000 times using.
Technical Data
|
Product name |
Safety edge |
|
Item NO. |
FS-102 |
|
Type |
Separated type |
|
Sensor length |
Max.3000mm, Min.200mm |

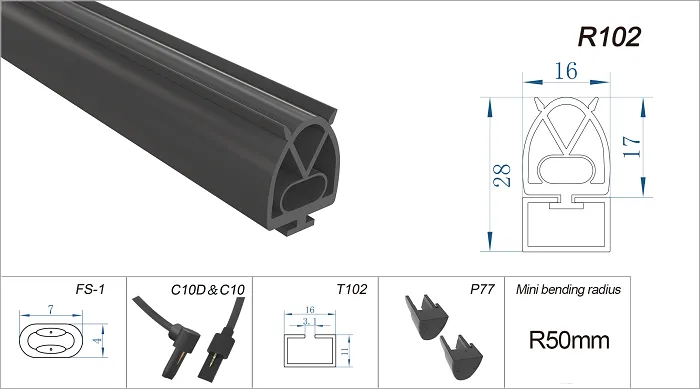

Components
|
a. Rubber outer profile R102 |
EPDM material,black color |
|
b. Inner sensor tape FS-1 |
Silicon material,Black color(FS-5 available) |
|
c. End piece C10 |
With standard length 200mm cable;28AWG |
|
d. End cap P77 |
PVC material |
|
e. Rail T101 |
Aluminum,W 16mm*H 10mm,Max length 3M |
|
1.Size |
W 16mm*H 28mm |
|
2.Protection class |
IP65,IP67 available |
|
3.Trigger force |
＜30N( at room temperance 20℃) |
|
4.Launch distance |
1.0-2.5mm |
|
5.Mini bending radius |
R50mm |
|
6. Dead zone |
±20mm at each end |
|
7.Wire-out direction |
Straight lead default |
|
8.Temperature range |
-40℃+80℃ |
|
9. Base weight |
±380g/m |
|
10.Package |
Carton;＜3m/pc |
|
11.Approval |
CE,ROHS,ISO9001:2015,TUV |
|
12.Custom Design |
OEM & ODM |
Accessories

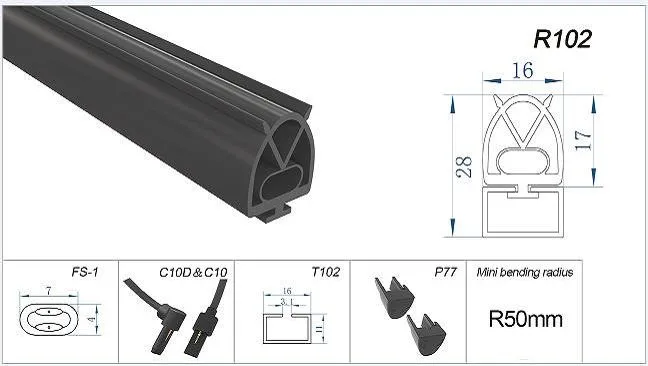

Futai Safety Edge R102 Kit
|
Code |
Product name |
Code |
View |
Dimension |
UNIT |
Remark |
|
1 |
Rubber profile |
R102 |
|
|
meter |
50m/roll |
|
2 |
Sensor tape |
FS-1 |
|
|
meter |
100m/roll |
|
3 |
Aluminum Track |
T102 |
|
|
meter |
1-2m/pcs |
|
4 |
Plug |
P77 |
|
|
pair |
|
|
5 |
End cable |
C10 |
|
0.25m cable |
set |
with or without resistor |
Packing & Shipping
- By Express
- Air Transportation
- Sea Transportation.
Our Service
1. Assembly.
2. Cutting.
3. Hole making.
4. Free sample (within 1 meter)
5. Rubber sensitive edge for machine Customized.
6. End-to-end service.
FAQ
Q: What services can we provide?
A: Accepted Delivery Terms: FOB, FCA,DAP,CIF,CPT,EXW...
Accepted Payment Currency:USD&CNY
Accepted Payment Type: T/T,PayPal
Q: Do you have the matched accessories?
A: Yes, we offer One-Stop Solution service, and we supply the related accessories, such as alum track, end cable and plugs.
Q: What is the delivery port?
A: Ningbo or Shanghai or Shenzhen
Q: What's your advantage?
A: Over 10 years of expertise in cutting, assembly, and drilling.
Q: What can you buy from us?
A: Rubber sensitive edge for machine can be tagged Label,Thermal Paper,Data Collector,Barcode Scanner,Label Printer
