Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of safety edge switch for auto gates in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved safety edge switch for auto gates, welcome to get free sample and discount information from our factory.
Safety edge FS-148
safety edge switch for auto gates R148 is applied to auto industrial rolling doors. This rubber profile is high cost effective as it can work without aluminum track.
Technical Data
|
Product name |
Safety edge |
|
Item NO. |
FS-148 |
|
Type |
Separated type |
|
Sensor length |
Max.3000mm, Min.200mm |

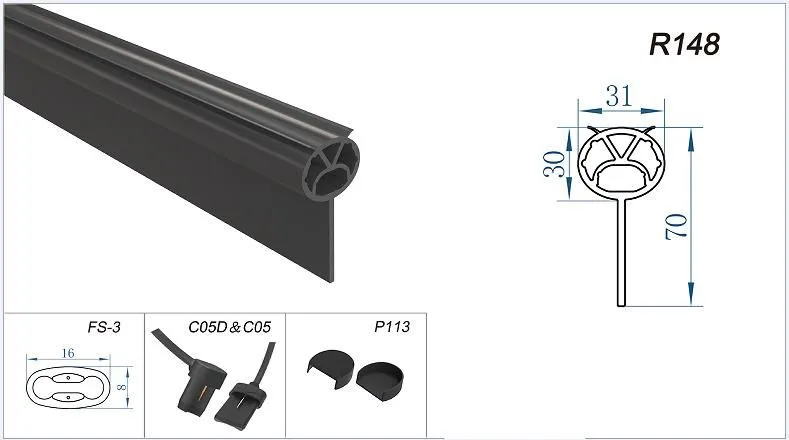

Components
|
a. Rubber outer profile R148 |
EPDM material,black color |
|
b. Inner sensor tape FS-3 |
Silicon material,Black color(FS-13 available) |
|
c. End piece C05 |
With standard length 200mm cable;24AWG |
|
d. End cap P148 |
NBR material |
|
1.Size (W*H) |
W 32.5mm*H 67.5mm |
|
2.Protection class |
IP65,IP67 available |
|
3.Trigger force |
＜40N( at room temperance 20℃) |
|
4.Launch distance |
4.5-7.0mm |
|
6. Dead zone |
±20mm at each end |
|
7.Wire-out direction |
Straight lead default |
|
8.Temperature range |
-40℃+80℃ |
|
9.Base weight |
±700g/m |
|
10.Package |
Carton;＜3m/pc |
|
11.Approval |
CE,ROHS,ISO9001:2015,TUV |
|
12.Custom Design |
OEM & ODM |
Accessories
Futai Safety Edge FS-148 Kit
|
Code |
Product name |
Code |
View |
Dimension |
UNIT |
Remark |
|
1 |
Rubber profile |
R148 |
|
|
meter |
30m/roll |
|
2 |
Sensor tape |
FS-3 |
|
16mm*7.5mm |
meter |
100m/roll |
|
3 |
Aluminum Track |
/ |
/ |
/ |
meter |
/ |
|
4 |
Plug |
P113 |
|
/ |
pair |
|
|
5 |
End cable |
C05 |
|
0.20m cable |
set |
with or without resistor |
Packing & Shipping
- By Express
- Air Transportation
- Sea Transportation
Why Choose Us?
Our Profession
1.Since our establishment, we have been focusing on the field of high-quality and high-service safety edges.
2.We have also obtained the CE, RoHS, and GB/T19001-2016/ISO9001:2015 certifications.
3.We have Over 10 years of expertise in cutting, assembly, and drilling.
Our Service
1. Putting together service
2. Cut service.
3. Hole making service
4. Free sample( under 1 mater)
5. Safety edge switch for auto gates Customization service
5. Total Solution
FAQ
Q: Are you a manufacturer?
A: Yes, we are a manufacturer , FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
Q: What's your MOQ?
A: MOQ can be 2 pcs, but the price is not competitive.More quantity,the price will be more competitive.
Q: Can you quote FOB price?
A: Yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea.
We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
Q: How is your quality?
A: Our production is according to Europe standard. CE, ISO, RoHS,certified.
All the products are 100% test before delivery.
Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 500 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
Q: What's your warranty?
A: Depends one different product, we have1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
Q: What's your packing?
A: International export standard package.If you need to print your logo on the packing, please let us know before we quote.
Q: Can you offer OEM/ODM?
A: Yes, we can, safety edge switch for auto gates products accept OEM /ODM. we can sign the Confidentiality Agreement.
Hot Tags: safety edge switch for auto gates, China safety edge switch for auto gates manufacturers, suppliers, factory
