Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of rubber sensitive edge for robot in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved rubber sensitive edge for robot, welcome to get free sample and discount information from our factory.

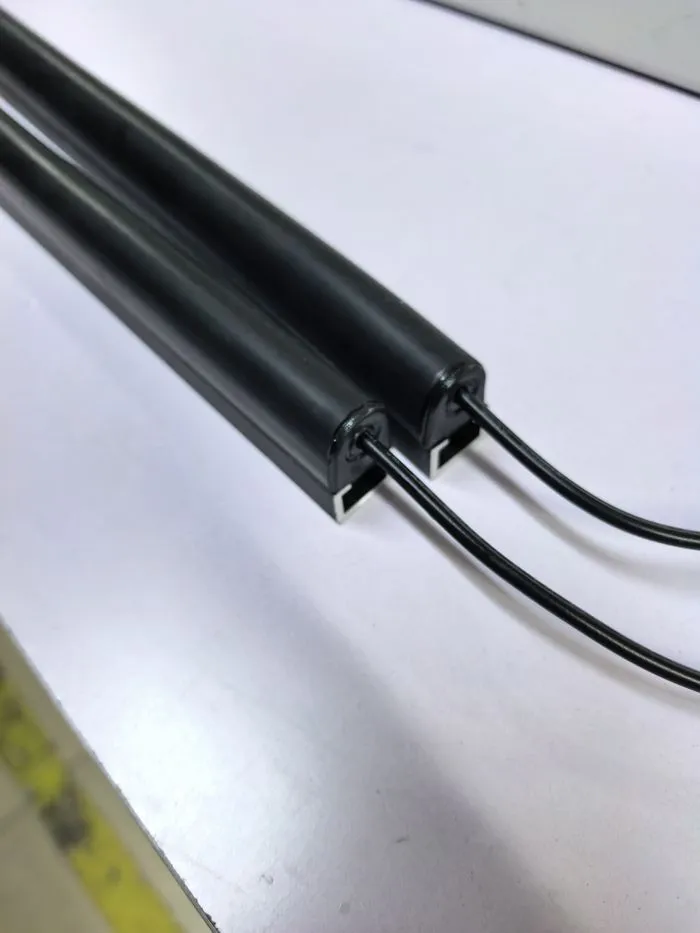

Safety edge FS-103B

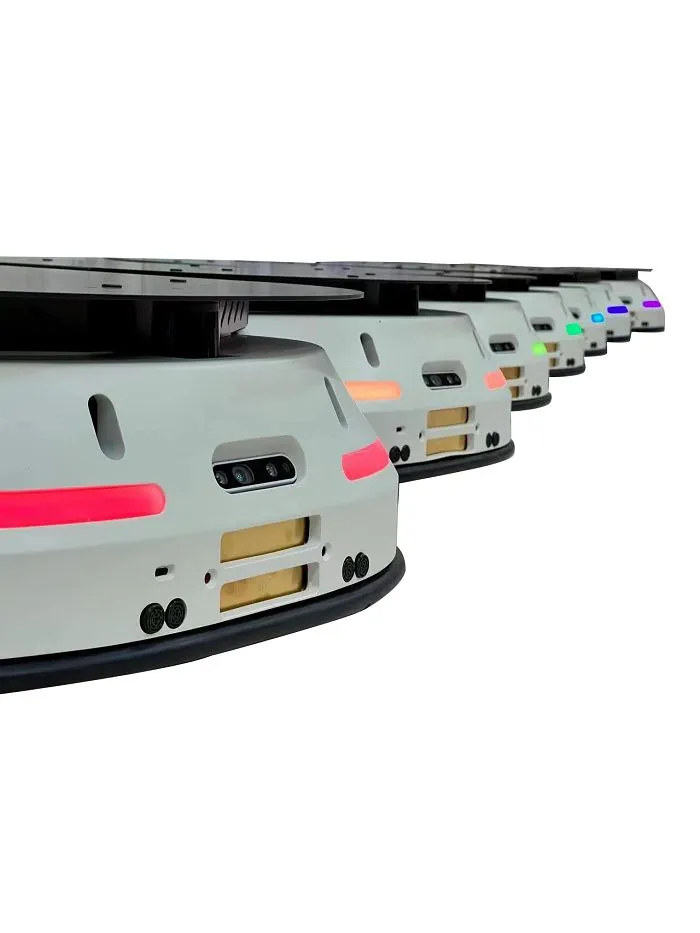

FUTAI safety edge sensor FS-103B size similar with FS-103 and also is usually applied to AGV and robot arm protection.
The mini bending radius R50mm,It works with safety sensor strip FS-2 or FS-9 and FA609. This Rubber sensitive edge for robot switch is high cost effective and durable, we offer 20 years service or 100,000 times using.
The MOQ of this item is 500m.
If you are interested in our products, we will try our best to provide the best price.
Technical Data
|
Product name |
Safety edge |
|
Item NO. |
FS-103B |
|
Applications |
For AGV and Robot |
|
Type |
Separated type |
|
Sensor length |
Max.3000mm, Min.200mm |

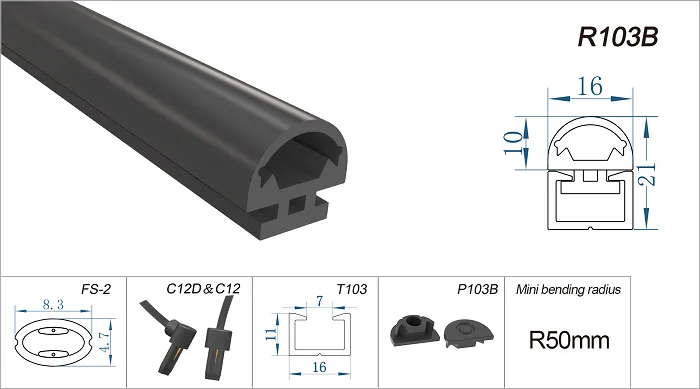

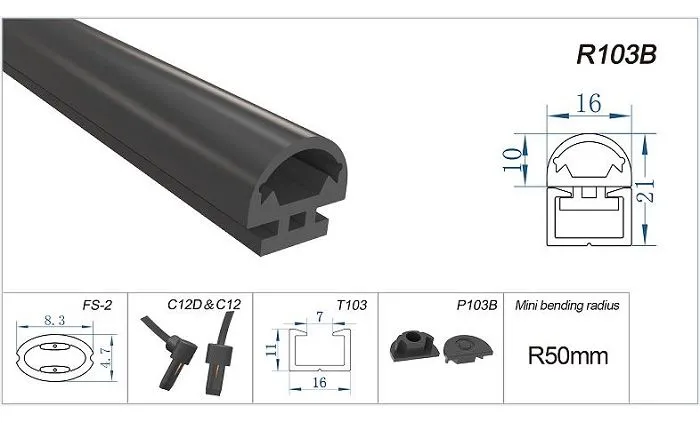

Components
|
a.Rubber outer profile R103B |
EPDM material,black color |
|
b. Inner sensor tape FS-2 |
Silicon material,black color (FS-11 available) |
|
c. End piece C12 |
With standard length 200mm cable;28AWG |
|
d. End cap P103B |
NBR material |
|
e. Rail T103 |
Black,Aluminum, W 16mm*H 11mm,Max length 3M |
|
1.Size |
W 16mm*H 21mm |
|
2.Protection class |
IP65,IP67 available |
|
3.Trigger force |
<30N( at room temperance 20℃) |
|
4.Launch distance |
1.0-2.0mm |
|
5.Mini bending radius |
R50mm |
|
6. Dead zone |
±20mm at each end |
|
7.Wire-out direction |
Straight lead default |
|
8.Temperature range |
-40℃+80℃ |
|
9.Base weight |
±325g/m |
|
10.Package |
Carton;＜3m/pc |
|
11.Approval |
CE,ROHS,ISO9001:2015,TUV |
|
12.Custom Design |
OEM & ODM |
Accessories
Futai Safety Edge FS-103B Kit
|
Code |
Product name |
Code |
View |
Dimension |
UNIT |
Remark |
|
1 |
Rubber profile |
R103B |
|
|
meter |
50m/roll |
|
2 |
Sensor tape |
FS-2 |
|
|
meter |
100m/roll |
|
3 |
Aluminum Track |
T103 |
|
|
meter |
1-2m/pcs |
|
4 |
Plug |
P103 |
|
/ |
pair |
|
|
5 |
End cable |
C12 |
|
0.20m cable |
set |
with or without resistor |
Packing & Shipping
- By Express
- Air Transportation
- Sea Transportation.
Our Service
1. Assembly service
2. Precision Cutting service.
3. Hole-making service
4. Sample available (1 mster free)
5. Rubber sensitive edge for robot Customization service
6. Turnkey Solution
FAQ
Q: Are your products complete or parts? Do we need to assemble it ourselves?
A: We usually assemble it and put it into a carton for you to ship. We can also package and ship all the parts according to your requirements, which saves more volume and reduces shipping costs.
Q: What is your packaging method?
A: Usually packed in strong carton, other packing can also be used according to your requirements.
Q: How will you ship?
A: Our delivery terms are EXW, FOB, CFR, CIF, DDU, DAP, DDP. Shipping methods are: land, rail, ocean shipping, air, shipment by sea, express, we can ship our products to any place in the world.
Q: Can I have a sample?
A: It depends on which Rubber sensitive edge for robot products, Free sample provide under 1 meter. Freight will be paid by buyer before delivery.
