Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of safety edge switch for pneumatic gates in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved safety edge switch for pneumatic gates, welcome to get free sample and discount information from our factory.
Safety edge FS-310
It named safety edge switch for Pneumatic gates, This is a safety-sensitive activation profile commonly used by customers on pneumatic doors or machinery.
Technical Data
|
Product name |
Pneumatic safety edge |
|
Item No. |
FS-310 |
|
Type |
Separated type |
|
Sensor length |
Max.3000mm, Min.200mm |
|

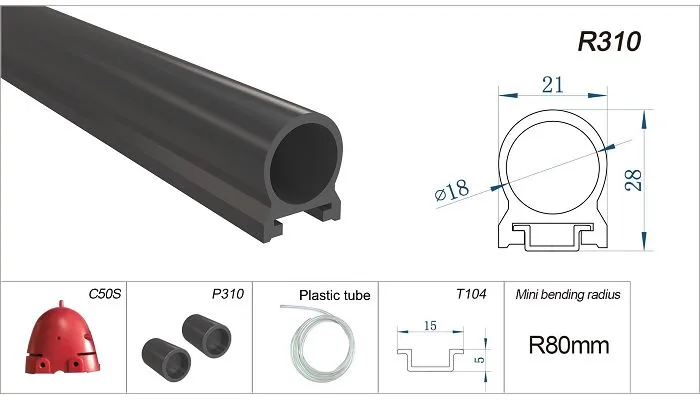

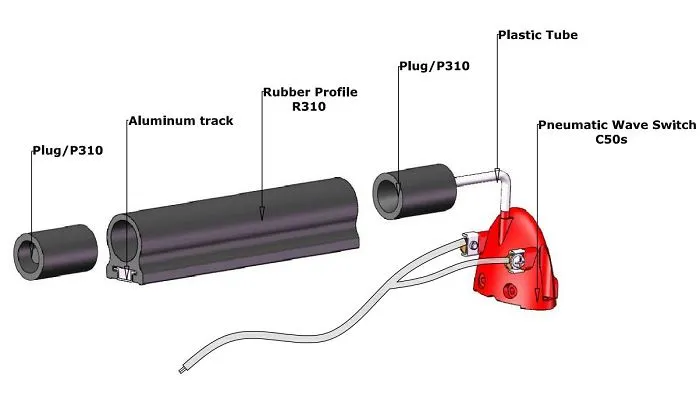

a. Rubber profile R310 |
EPDM material,black color |
|
b. Pressure wave switch C50 |
With standard length 200mm cable;with 1000mm plastic tube |
|
c. End plug P310 |
EPDM material |
|
d. Rail T104 |
Aluminum,W 15mm*H 5mm,Max length 3M |
|
1.Size |
W 21mm*H 28mm |
|
2.Mini bending radius |
R80mm |
|
3.Temperature range |
-40℃+80℃ |
|
4.Base weight |
±375g/m |
|
5.Package |
Carton;＜3m/pc |
|
6.Approval |
CE,ROHS,ISO9001:2015,TUV |
|
7.Custom Design |
OEM & ODM |
Our Service
1. Assembly service
2. Cut service.
3. Hole service
4. Sample available (Less than 1 meter for free)
5. Customize service
5. safety edge switch for Pneumatic gates One-Stop Solution
FAQ
Q: What is the trade terms?
A: FOB, FCA,DAP,CIF,CPT,EXW...
Q: MOQ and production time?
A: MOQ 100 meters or 100 pcs, 10-20 days lead time.
Q: How long can I expect to get the sample?
A: 3--10days.
