Safety edge FS-305
It named safety edge for auto Industrial Equipment,It's hot product with T foot. This sensor profiles works with Safety sensor tape FS-13 are compatible with conventional gate control and transmission systems with an 8k2 or 1k2 equipment.
The advantage of this Safety contact edge:
1. The bottom flat base design and same as FS-304,In the assembly-friendly service operation, simple and fast self-assembly on site is possible..
2. It is long service life for the outer rubber profile.
Technical Data
|
Product name |
Safety edge |
|
Item No. |
FS-305 |
|
Type |
Separated type |
|
Sensor length |
Max.3000mm, Min.200mm |

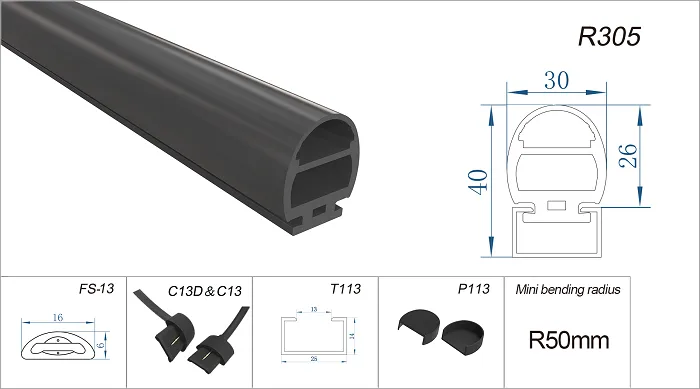

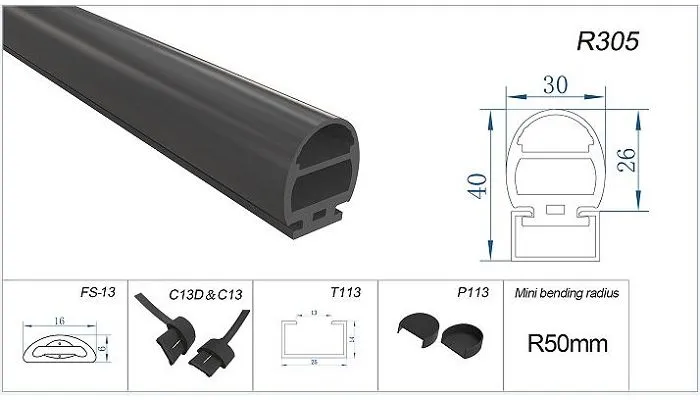

Components
|
a. Rubber outer profile R305 |
EPDM material,black color |
|
b. Inner sensor tape FS-13 |
Silicon material,black color |
|
c. End piece C13 |
With standard length 200mm cable;24AWG |
|
d. End cap P113 |
NBR material |
|
e. Rail T113 |
Aluminum,W 25mm*H 14mm,Max length 3M |
|
1.Size |
W 30mm*H 40mm |
|
2.Protection class |
IP65,IP67 available |
|
3.Trigger force |
＜30N( at room temperance 20℃) |
|
4.Launch distance |
6.0-8.0mm |
|
5.Mini bending radius |
R50mm |
|
6. Dead zone |
±20mm at each end |
|
7.Wire-out direction |
Straight lead default |
|
8.Temperature range |
-40℃+80℃ |
|
9.Base weight |
±905g/m |
|
10.Package |
Carton;＜3m/pc |
|
11.Approval |
CE,ROHS,ISO9001:2015,TUV |
|
12.Custom Design |
OEM & ODM |
Accessories
Futai Safety Edge FS-304 Kit
|
Code |
Product name |
Code |
View |
Dimension |
UNIT |
Remark |
|
1 |
Rubber profile |
R304 |
|
|
meter |
30m/roll |
|
2 |
Sensor tape |
FS-13 |
|
|
meter |
100m/roll |
|
3 |
Aluminum Track |
T113 |
|
|
meter |
1-2m/pcs |
|
4 |
Plug |
P113 |
|
/ |
pair |
|
|
5 |
End cable |
C13 |
|
0.20m cable |
set |
with or without resistor |
Packing & Shipping
Our Service
1.Fitting service
2. Die Cutting service.
3. Making Hole service
4. Sample available (No charge for sample under 1 meter)
5. Tailore service
6. Safety edge for auto Industrial Equipment One-Stop Solution
FAQ
Q: What is the trade terms?
A: FOB, FCA,DAP,CIF,CPT,EXW...
Q: What's the lead time for orders?
A: Standard models ship in 10–30 days; customized units require 30–45 days.
Q: How long can I expect to get the sample?
A: 3-5 days.
Q: What is the package of the safety edge?
A: Safety edge The package is usually carton.also according to customer's requirment.
How do I place an order?
Contact us via email/phone for a quote, then confirm with a PO.
