Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of rubber sensitive edge for lifting platform in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved rubber sensitive edge for lifting platform, welcome to get free sample and discount information from our factory.
Safety rubber profile FS-219 size Smaller than FS-218, and also usually for Revolving door. R219 is rubber profile, it work with the safety sensor tape FS-3 too. it also named Rubber sensitive edge for lifting platform.
Technical Data
|
Product name |
Safety edge |
|
Item No. |
FS-219 |
|
Type |
Separated type |
|
Sensor length |
Max.3000mm, Min.200mm |

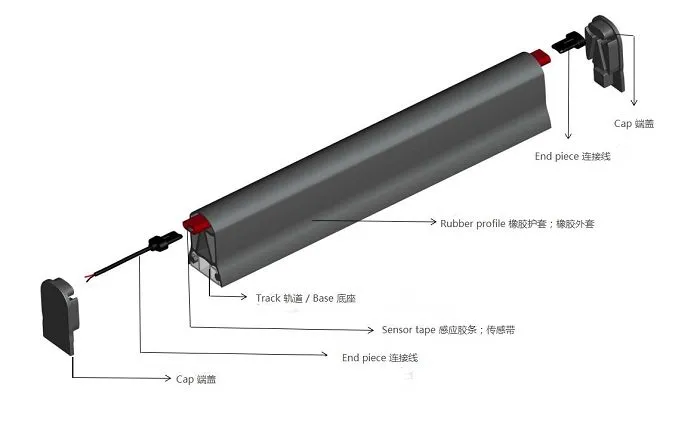

Components
|
a. Rubber outer profile R219 |
EPDM material,black color |
|
b. Inner sensor tape FS-3 |
Silicon material,red color(FS-13 available) |
|
c. End piece C05 |
With standard length 200mm cable;28AWG |
|
d. End cap P219 |
EPDM material |
|
e. Rail T108 |
Aluminum,W 28mm*H 13mm,Max length 3M |
|
1.Size (W*H) |
W 32mm*H 58mm |
|
2.Protection class |
IP65,IP67 available |
|
3.Trigger force |
＜40N( at room temperance 20℃) |
|
4.Launch distance |
4.5-7.0mm |
|
5.Mini bending radius |
R300mm |
|
6. Dead zone |
±30mm at each end |
|
7.Wire-out direction |
Straight lead default |
|
8.Temperature range |
-40℃+80℃ |
|
9.Base weight |
±1180g/m |
|
10.Package |
Carton;＜3m/pc |
|
11.Approval |
CE,ROHS,ISO9001:2015,TUV |
|
12.Custom Design |
OEM & ODM |

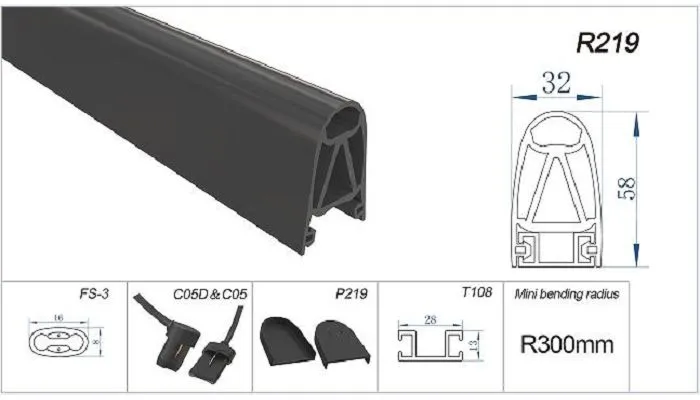

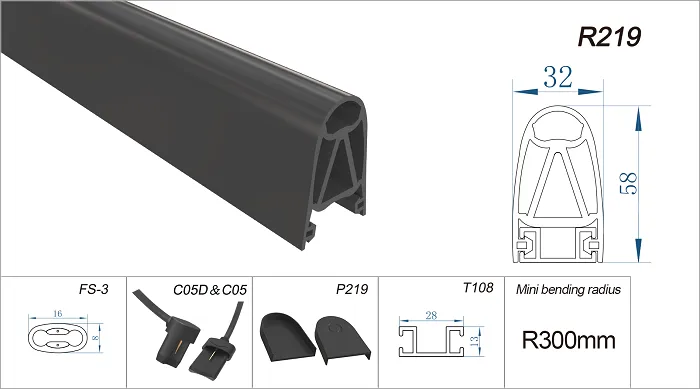

Accessories
Futai Safety Edge FS-219 Kit
|
Code |
Product name |
Code |
View |
Dimension |
UNIT |
Remark |
|
1 |
Rubber profile |
R219 |
|
|
meter |
15m/roll |
|
2 |
Sensor tape |
FS-3 |
|
|
meter |
100m/roll |
|
3 |
Aluminum Track |
T108 |
|
|
meter |
1-2m/pcs |
|
4 |
Plug |
P219 |
|
/ |
pair |
|
|
5 |
End cable |
C05 |
|
0.20m cable |
set |
with or without resistor |
Our Service
1. Component joining.
2. Cutting.
3. Boring.
4. Sample available (Zero-cost sample for lengths within 1 meter)
5. Rubber sensitive edge for lifting platform Specialized.
FAQ
Q: What is the trade terms?
A: FOB, FCA,DAP,CIF,CPT,EXW...
Q: MOQ and production time?
A: MOQ 100 meters or 50 pcs, 10-15days lead time.
Q: How long can I expect to get the sample?
A: 5-7 days.
Q: Do you have the matched accessories?
A: Yes, we offer All-in-one service, and related accessories, such as Alum rail, end cable and end cap.
Q: What's your advantage?
A: Customization flexibility – Rubber sensitive edge for lifting platform Tailored dimensions, materials, and finishes to meet your exact needs.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
