Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of rubber safety edge for stage in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved rubber safety edge for stage, welcome to get free sample and discount information from our factory.
Revolving door safety edge FS-218 is the biggest size in all edges. R218 is rubber profile, it must work with the safety sensor tape FS-3.it also named Rubber safety edge for stage
Rubber profile R206 is also suitable for revolving door, it's smaller, size is 40mm width and 60mm height.
The advantage of this safety rubber edge is durable and has a long service life, we offer 20years service or 100,000 times using.
Technical Data
|
Product name |
Safety edge |
|
Item No. |
FS-218 |
|
Type |
Separated type |
|
Sensor length |
Max.3000mm, Min.200mm |

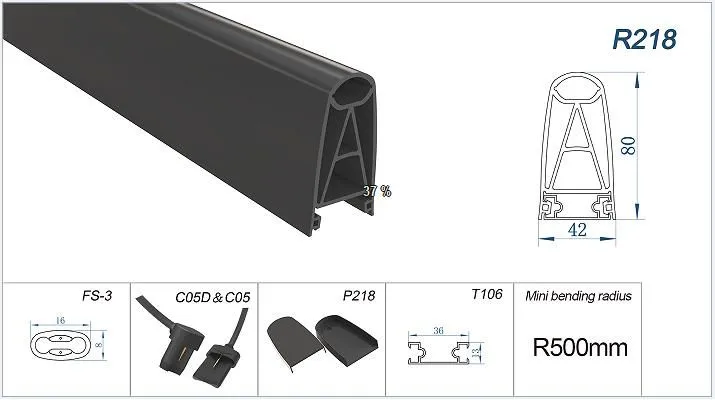

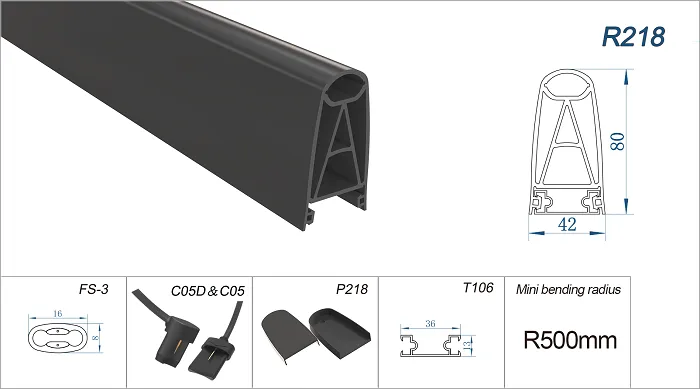

Components
|
a. Rubber outer profile R218 |
EPDM material,black color |
|
b. Inner sensor tape FS-3 |
Silicon material,red color(FS-13 available) |
|
c. End piece C05 |
With standard length 200mm cable;28AWG |
|
d. End cap P218 |
EPDM material |
|
e. Rail T106 |
Aluminum,W 36mm*H 13mm, Max length 3M |
|
1.Size |
W 42mm* 80mm |
|
2.Protection class |
IP65,IP67 available |
|
3.Trigger force |
＜30N( at room temperance 20℃) |
|
4.Launch distance |
6.5-10.0mm |
|
5.Mini bending radius |
R500mm |
|
6. Dead zone |
±30mm at each end |
|
7.Wire-out direction |
Straight lead default |
|
8.Temperature range |
-40℃+80℃ |
|
9.Base weight |
±1610g/m |
|
10.Package |
Carton;＜3m/pc |
|
11.Approval |
CE,ROHS,ISO9001:2015,TUV |
|
12.Custom Design |
OEM & ODM |
Accessories
Futai Safety Edge FS-218 Kit
|
Code |
Product name |
Code |
View |
Dimension |
UNIT |
Remark |
|
1 |
Rubber profile |
R218 |
|
|
meter |
20m/roll |
|
2 |
Sensor tape |
FS-3 |
|
|
meter |
100m/roll |
|
3 |
Aluminum Track |
T106 |
|
|
meter |
1-2m/pcs |
|
4 |
Plug |
P218 |
|
/ |
pair |
|
|
5 |
End cable |
C05 |
|
0.20m cable |
set |
with or without resistor |
Packing & Shipping
Why Choose Us?
Our Profession
1.Experienced technical team – Over 10 years of expertise in cutting, assembly, and drilling for Rubber safety edge for stage.
2.One-stop solution – From design to delivery, we handle everything in-house.
Our Service
1. Installation.
2. Precision Cutting.
3. Boring.
4. Sample available (No charge for sample under 1 mater)
5. Build-to-spec.
FAQ
Q: What is the trade terms?
A: FOB, FCA,DAP,CIF,CPT,EXW...
Q: What's the MOQ of your product?
A: The MOQ of our most product is 100 meters. But if there's any exceptional situation, we can make some negotiations.
Q: What is the delivery port?
A: Ningbo or Shanghai
Q: What' your advantage?
A: Global shipping capability – Fast, tracked delivery to over 20 countries.
Q: How long does it take get my inquiry replied?
A: Mostly the inquiry will be replied within 12 hours. And the quote will be sent to you within 1-3 day. It depends on the technical parameters and requirements of the safety edge. We will give you a reasonable and accurate quote.
Q: Can I get samples before placing the order?
A: You will get a sample for free(within 1 meter) if we have the storage of that safety edge.
Q: What's the MOQ of your product?
A: The MOQ of our most Rubber safety edge for stage product is 100 meters. But if there's any exceptional situation, we can make some negotiations.
