Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of epdm safety edge for sliding gates in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved epdm safety edge for sliding gates, welcome to get free sample and discount information from our factory.
FUTAI EPDM safety edge R206 is usually applied to sliding gate and sliding doors. It works with safety sensor strip. This sensitive strip switch is high cost effective and durable, we offer 20years service or 100,000 times using.
Safety rubber R206 is widely application, it's mainly used on industrial doors and gates, sliding door, sliding gate, revolving door, speed door, gateway, platform, AGV, etc.

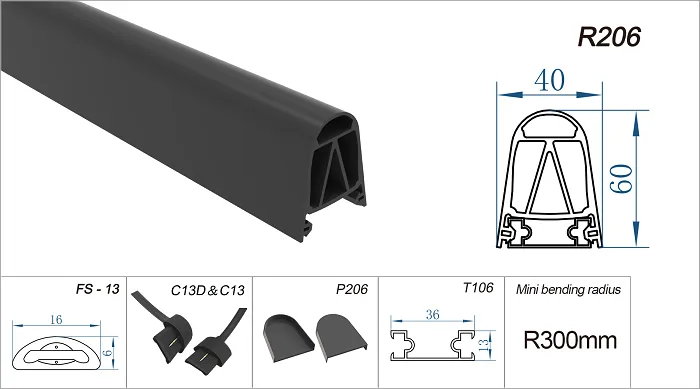

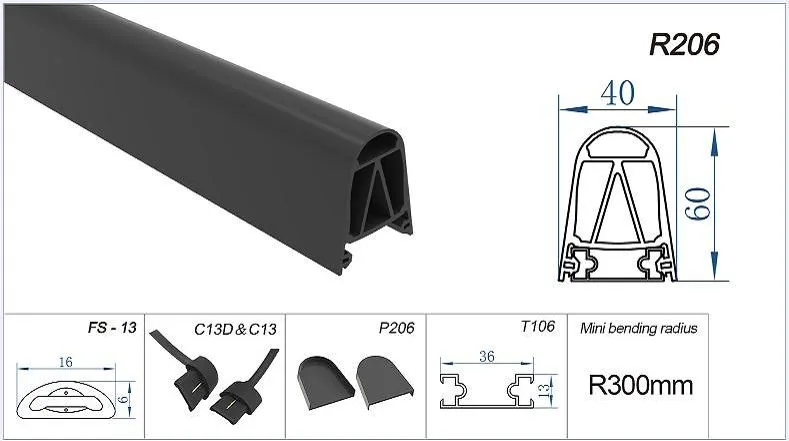

Technical Data
|
Product name |
Safety edge |
|
Item No. |
FS-206 |
|
Type |
Separated type |
|
Sensor length |
Max.3000mm, Min.200mm |

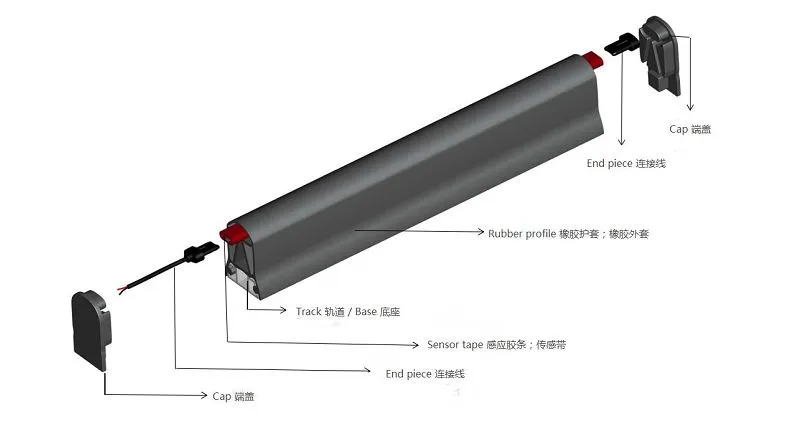

Components
|
a. Rubber outer profile R206 |
EPDM material,black color |
|
b. Inner sensor tape FS-13 |
Silicon material,black color |
|
c. End piece C13 |
With standard length 200mm cable;24AWG |
|
d. End cap P206 |
EPDM material |
|
e. Rail T106 |
Aluminum,W 36mm*H 13mm, Max length 3M |
|
1.Size |
W 40mm*H 60mm |
|
2.Protection class |
IP65,IP67 available |
|
3.Trigger force |
＜25N( at room temperance 20℃) |
|
4.Launch distance |
6.0-8.0mm |
|
5.Mini bending radius |
R300mm |
|
6. Dead zone |
±30mm at each end |
|
7.Wire-out direction |
Straight lead default |
|
8.Temperature range |
-40℃+80℃ |
|
9.Base weight |
±1020g/m |
|
10.Package |
Carton;＜3m/pc |
|
11.Approval |
CE,ROHS,ISO9001:2015,TUV |
|
12.Custom Design |
OEM & ODM |
Accessories
Futai Safety Edge FS-206 Kit
|
Code |
Product name |
Code |
View |
Dimension |
UNIT |
Remark |
|
1 |
Rubber profile |
R206 |
|
|
meter |
15m/roll |
|
2 |
Sensor tape |
FS-3 |
|
16mm*7.5mm |
meter |
100m/roll |
|
3 |
Aluminum Track |
T106 |
|
|
meter |
1-2m/pcs |
|
4 |
Plug |
P-206 |
|
/ |
pair |
|
|
5 |
End cable |
C05 |
|
0.25m cable |
set |
with or without resistor |
Packing & Shipping
- By Express
- Air Transportation
- Sea Transportation
Why Choose Us?
1. EPDM safety edge Integration.
2. Cutting.
3. Drilling.
4. Sample available (1 meter maximum free sample)
5. Custom-made.
5. End-to-end.
FAQ
Q: What is the trade terms?
A: FOB, FCA,DAP,CIF,CPT,EXW...
Q: MOQ and production time?
A: MOQ 100 meters or 100 pcs, 10-15 days lead time.
Q: Do you have the matched accessories?
A: Yes, we offer End-to-end service, and related accessories, such as Alum track, end cable and end cap.
Q: What is the delivery port?
A: Ningbo or Shanghai
Q: What's the lead time for orders?
A: EPDM safety edge Standard models ship in 10-15 days; customized units require 20-30 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
