Ningbo Futai Safety Edge Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of rubber safety edge for auto machine in China, specialized in providing high quality customized service. If you're going to buy bulk CE approved rubber safety edge for auto machine, welcome to get free sample and discount information from our factory.
Safety edge FS-211
FUTAI safety rubber profile R206 is usually applied to automatic equipment.
The mini bending radius R80mm, It works with safety sensor strip FS-13.If you need EPDM safety edge for sliding gates, please purchase FS-211.
Technical Data
|
Product name |
Safety edge |
|
Item No. |
FS-211 |
|
Type |
Separated type |
|
Sensor length |
Max.3000mm, Min.200mm |
Components
|

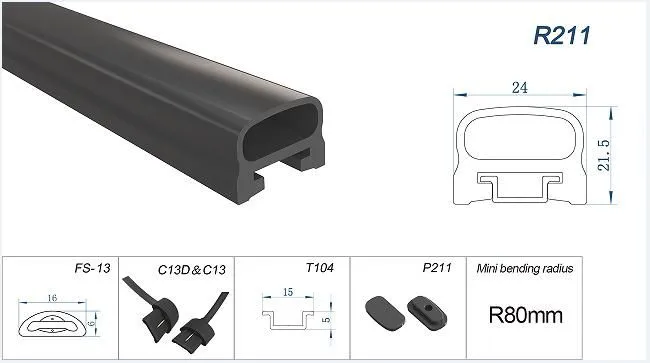

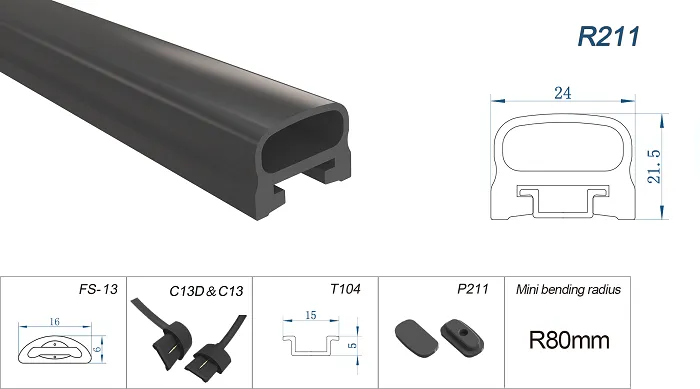

a. Rubber outer profile R211 |
EPDM material,black color |
|
b. Inner sensor tape FS-13 |
Silicon material,black color |
|
c. End piece C13 |
With standard length 200mm cable;24AWG |
|
d. End cap P211 |
NBR material |
|
e. Rail T104 |
Aluminum ,W 15mm*H 5mm,Max length 3M |
|
1.Size |
W 24mm*H 21.5mm |
|
2.Protection class |
IP65,IP67 available |
|
3.Trigger force |
＜30N( at room temperance 20℃) |
|
4.Launch distance |
3-5mm |
|
5.Mini bending radius |
R80m |
|
6. Dead zone |
±20mm at each end |
|
7.Wire-out direction |
Straight lead default |
|
8.Temperature range |
-40℃+80℃ |
|
9.Base weight |
±405g/m |
|
10.Package |
Carton;＜3m/pc |
|
11.Approval |
CE,ROHS,ISO9001:2015,TUV |
|
12.Custom Design |
OEM & ODM |
Accessories
Futai Safety Edge FS-211 Kit
|
Code |
Product name |
Code |
View |
Dimension |
UNIT |
Remark |
|
1 |
Rubber profile |
R211 |
|
|
meter |
30m/roll |
|
2 |
Sensor tape |
FS-3 |
|
16mm*7.5mm |
meter |
100m/roll |
|
3 |
Aluminum Track |
T104 |
|
|
meter |
1-2m/pcs |
|
4 |
Plug |
P211 |
|
/ |
pair |
|
|
5 |
End cable |
C05 |
|
0.20m cable |
set |
with or without resistor |
Packing & Shipping
- By Express
- Air Transportation
- Sea Transportation
Why Choose Us?
Our Profession
1.We persists"quality first,clients first."
2.We have also Issue the CE, RoHS, and GB/T19001-2016/ISO9001:2015 certifications and ECE R118 report.
Our Service
1. Assembly.
2. Cutting.
3. Hole-making.
4. Sample available (within 1 meter for free)
5. Custom-made.
5. Rubber safety edge for auto machine Specialized(to client's needs)
FAQ
Q: What is the trade terms?
A: FOB, FCA,DAP,CIF,CPT,EXW...
Q: What's your delivery time?
A: It depends on whether we just has the stock for your type.Normally,it takes about 5-7 days to achieve production.
Q: How can I get a sample from your company? Is the sample free?
A: If you need the sample to check the quality, please contact us, we will send you the free sample(within 1 meter), but the freight charge should be paid.
Q: What is the delivery port?
A: Ningbo or Shanghai
Q: Whats your advantage?
A: One stop Rubber safety edge for auto machine solution – From design to delivery, we handle everything in house.
Q: What's your minimum order quantity?
A: It is not so sure, you can confirm it with us. Normally, it will be 100 meters.
